Semi-Rigid SG Series

Grid

Table

Result: 6

Semi-Rigid coax cables are the best microwave transmission medium among all other coax cables with lowest attenuation, best VSWR and typical RF shielding >-130dB. With smallest overall diameters, they can be precisely formed and hold the shape, allowing efficient use in the tightest space.

SG series from RF ONE is 50 Ohm semi-rigid coax cable that has a PTFE (solid or low density) dielectric, available in .047”, .085”, .141” sizes with max operating frequency to 67 GHz. 034'' cables to 110 GHz will be available soon.

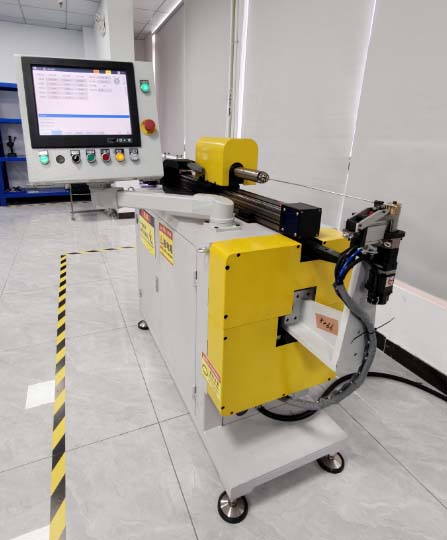

With semi-rigid automatic bending inhouse, we deliver the semi-rigid cables in high performance, cost effective solutions and meet very complicated bending configurations.

Features:

Available in 047”, 085”, 141” sizes up to 67 GHz (110 GHz comes soon)
Can be bent according to custom drawings
Superior shielding effectiveness
Various connectors available off-the-shelf
Phase matched sets available

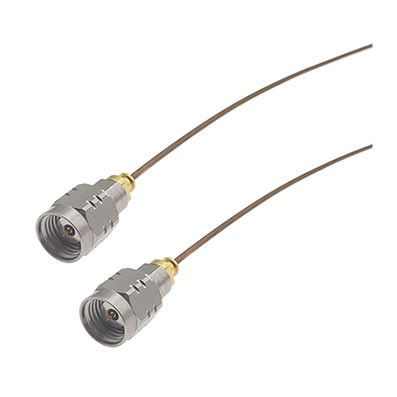

SG047

Low Loss 110GHz.047 Semi-Rigid Coax Cable

Datasheet

Add to RFQ

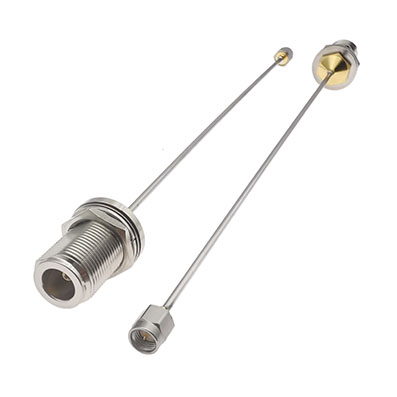

SG047S

67GHz.047 Semi-Rigid Coax Cable

Datasheet

Add to RFQ

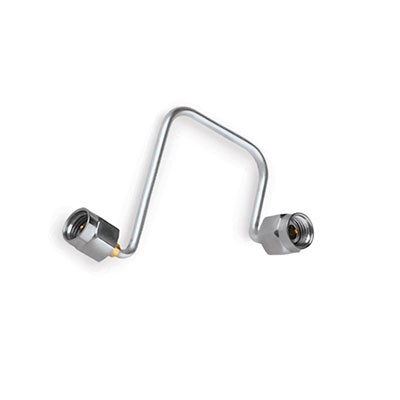

SG086

Low Loss 50GHz.086 Semi-Rigid Coax Cable

Datasheet

Add to RFQ

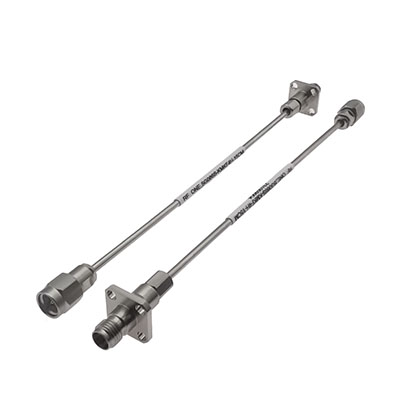

SG086S

40GHz .086 Semi-Rigid Coax Cable

Datasheet

Add to RFQ

SG120

Low Loss 40 GHz Φ3.1mm Semi-Rigid Coax Cable

Datasheet

Add to RFQ

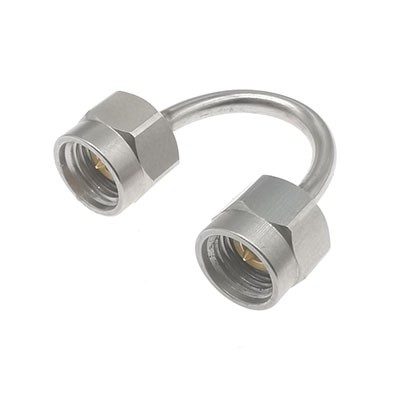

SG141

Low Loss 26.5 GHz.141 Semi-Rigid Coax Cable

Datasheet

Add to RFQ

Show 20

Show 40

Show 60

Show 80

P/N	Frequency Max	Outer Diameter	Loss at Max Freq	Power at Max Freq	Add to RFQ
SG047	110 GHz	1.2mm	9.7 dB/m	4 W	Add to RFQ
SG047S	67 GHz	1.19mm	10.1 dB/m	5 W	Add to RFQ
SG086	50 GHz	2.18mm	4.1 dB/m	34 W	Add to RFQ
SG086S	40 GHz	2.2mm	5.0 dB/m	17 W	Add to RFQ
SG120	40 GHz	3.1mm	2.3 dB/m	74 W	Add to RFQ
SG141	26.5 GHz	3.05mm	1.7 dB/m	106 W	Add to RFQ
