Low PIM coaxial attenuators are designed to minimize passive intermodulation (PIM) ensuring enhanced signal integrity and reduced interference in critical applications. RF ONE provides a range of low PIM attenuators with leading PIM performance guaranteed -160 dBc in connector of N type, 4.3-10 and 7/16 DIN, covering power rates of 25 W, 50 W, 100 W, 200 W to suit different applications and budgets.
Our broad array of resistor type Fixed Attenuators RFH and RFHB series are also available in low PIM options, typically 110 dBC to 115 dBc.
| P/N | Average Power | Connector | Frequency Range | Input Return Loss Min | 3rd PIM Max | Add to RFQ |
|---|---|---|---|---|---|---|
| RALXX25FA-A | 25 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RALXX25NA-A | 25 W | N | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RALXX50FA-A | 50 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
|

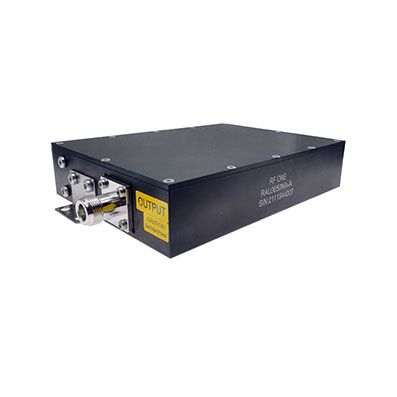

RALXX50NA-A |
50 W | N | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RALXX100FA-A | 100 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |

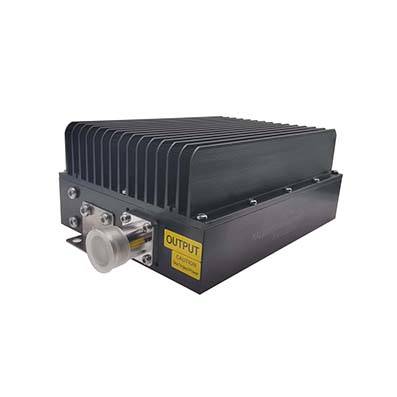

| RALXX100NA-A | 100 W | N | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
|

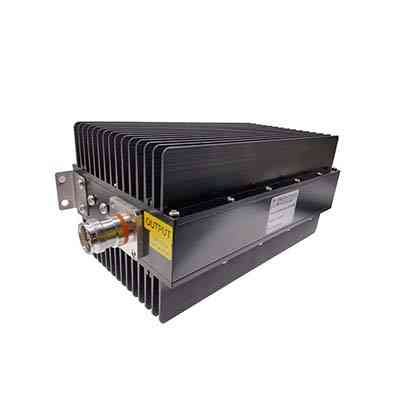

RALXX200FA-A |
200 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |

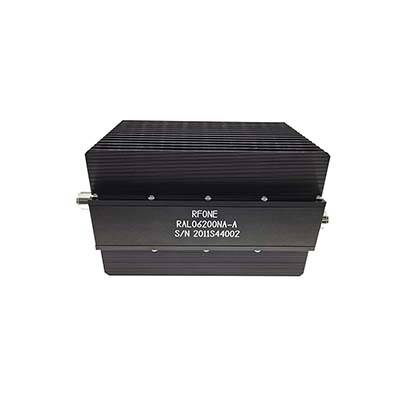

| RALXX200NA-A | 200 W | N | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RAL30200FA-C | 200 W | 4.3-10 | 400-6000 MHz | 18 dB | -160 dBc | Add to RFQ |

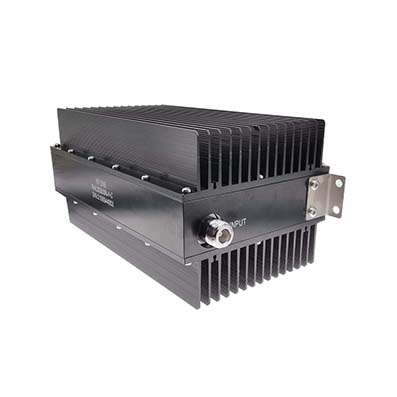

| RAL30200NA-C | 200 W | N | 400-6000 MHz | 18 dB | -160 dBc | Add to RFQ |

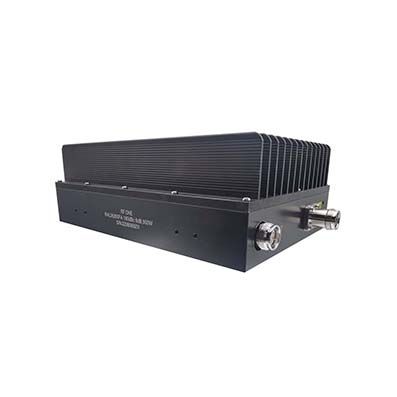

| RALXX300FA | 300 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RALXX300DA | 300 W | 7/16 DIN | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RALXX300NA | 300 W | N | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
|

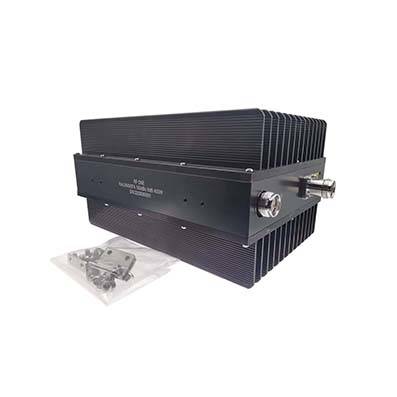

RALXX400FA |
400 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RALXX400DA | 400 W | 7/16 DIN | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RALXX400NA | 400 W | N | 555-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
| RALXX400FA1 | 400 W | 4.3-10 | 400-6000 MHz | 18 dB | -160 dBc | Add to RFQ |
