Standard Gain Horn Antennas

Grid

Table

Result: 130

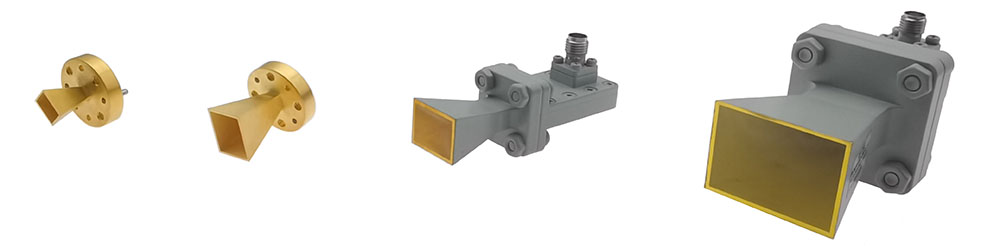

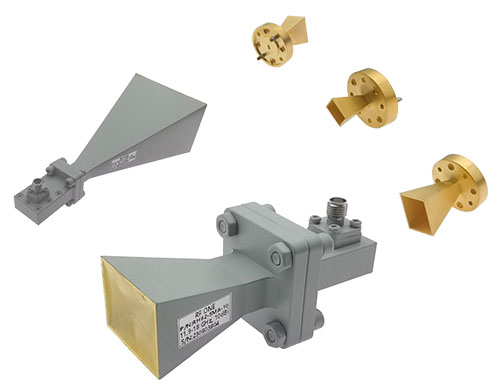

RF ONE offers a complete line of high quality standard gain horn antennas covering the waveguide sizes WR10 to WR284. These standard gain horn antennas are linearly polarized and provide an efficient low cost means of making measurements, ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other applications.

The horn antenna models listed below are the most common gain values available, typically 10 dB, 15 dB, 20dB, and 25 dB gain horn antenna. Other gain values and horn antenna sizes can be designed to your requirements.

Our Standard gain horn antennas can be ordered with waveguide flange, or can be built with a waveguide to coax adapter.

Waveguide Standard Gain Horn Antennas

The input port is standard waveguide flange, max power is equal to the max power of the input waveguide size.

Standard Gain Horn Antennas with Coax Adapter

The horn is integrated with a waveguide to coax adapter, max power rating of the coax connection becomes the limiting factor.

Filter

Series

Waveguide Standard Gain Horn Antennas

Standard Gain Horn Antennas with Coax Adapter

Waveguide Size

WR10

WR75

WR229

WR187

WR159

WR137

WR112

WR90

WR62

WR12

WR51

WR42

WR34

WR28

WR22

WR19

WR15

WR284

Frequency Range

2.6-3.95 GHz

3.22-4.9 GHz

3.94-5.99 GHz

4.64-7.05 GHz

5.38-8.17 GHz

6.57-9.99 GHz

8.2-12.5 GHz

9.84-15 GHz

11.9-18 GHz

14.5-22 GHz

17.6-26.7 GHz

21.7-33 GHz

26.3-40 GHz

32.9-50.1 GHz

39.2-59.6 GHz

49.8-70 GHz

49.8-75.8 GHz

60.5-91.9 GHz

73.8-110 GHz

Gain

10 dBi

15 dBi

20 dBi

25 dBi

Reset Filters

Export to Excel

Submit

RH10-15

15 dBi Gain, 73.8-110 GHz, WR10 Standard Gain Horn with UG387/U-Mod Flange

Datasheet

Add to RFQ

RH10-20

20 dBi Gain, 73.8-110 GHz, WR10 Standard Gain Horn with UG387/U-Mod Flange

Datasheet

Add to RFQ

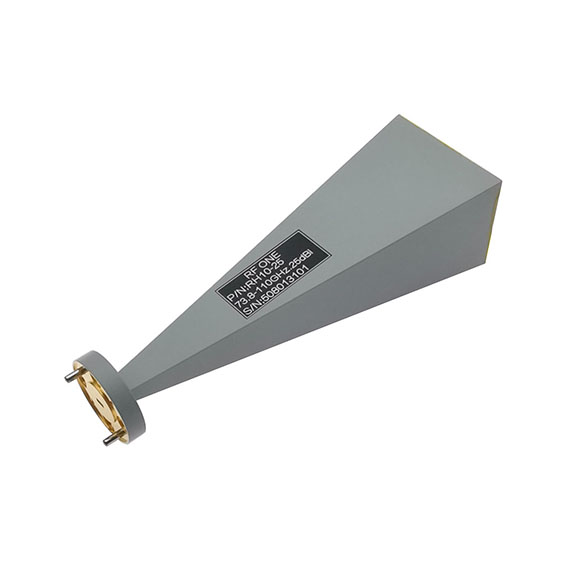

RH10-25

25 dBi Gain, 73.8-110 GHz, WR10 Standard Gain Horn with UG387/U-Mod Flange

Datasheet

Add to RFQ

RH12-10

10 dBi Gain, 60.5-91.9 GHz, WR12 Standard Gain Horn with UG387/U-Mod Flange

Datasheet

Add to RFQ

RH12-15

15 dBi Gain, 60.5-91.9 GHz, WR12 Standard Gain Horn with UG387/U-Mod Flange

Datasheet

Add to RFQ

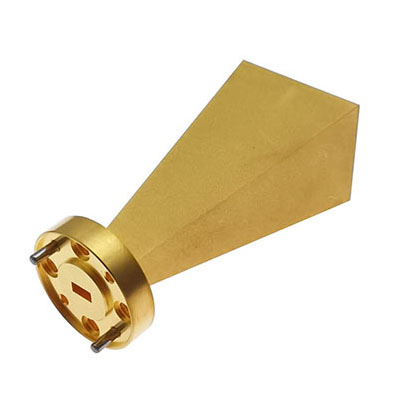

RH12-20

20 dBi Gain, 60.5-91.9 GHz, WR12 Standard Gain Horn with UG387/U-Mod Flange

Datasheet

Add to RFQ

RH12-25

25 dBi Gain, 60.5-91.9 GHz, WR12 Standard Gain Horn with UG387/U-Mod Flange

Datasheet

Add to RFQ

RH15-10

10 dBi Gain, 49.8-75.8 GHz, WR15 Standard Gain Horn with UG385/U Flange

Datasheet

Add to RFQ

RH15-15

15 dBi Gain, 49.8-75.8 GHz, WR15 Standard Gain Horn with UG385/U Flange

Datasheet

Add to RFQ

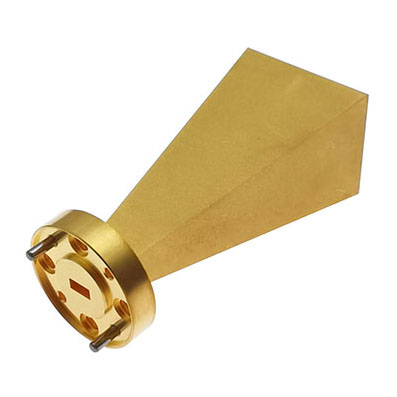

RH15-20

20 dBi Gain, 49.8-75.8 GHz, WR15 Standard Gain Horn with UG385/U Flange

Datasheet

Add to RFQ

RH15-25

25 dBi Gain, 49.8-75.8 GHz, WR15 Standard Gain Horn with UG385/U Flange

Datasheet

Add to RFQ

RH19-10

10 dBi Gain, 39.2-59.6 GHz, WR19 Standard Gain Horn with UG383/U-Mod Flange

Datasheet

Add to RFQ

RH19-15

15 dBi Gain, 39.2-59.6 GHz, WR19 Standard Gain Horn with UG383/U-Mod Flange

Datasheet

Add to RFQ

RH19-20

20 dBi Gain, 39.2-59.6 GHz, WR19 Standard Gain Horn with UG383/U-Mod Flange

Datasheet

Add to RFQ

RH19-25

25 dBi Gain, 39.2-59.6 GHz, WR19 Standard Gain Horn with UG383/U-Mod Flange

Datasheet

Add to RFQ

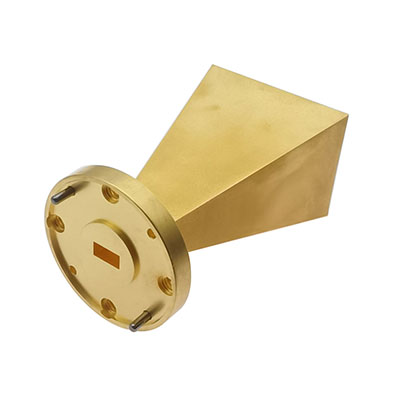

RH22-10

10 dBi Gain, 32.9-50.1 GHz, WR22 Standard Gain Horn with UG383/U Flange

Datasheet

Add to RFQ

RH22-15

15 dBi Gain, 32.9-50.1 GHz, WR22 Standard Gain Horn with UG383/U Flange

Datasheet

Add to RFQ

RH22-20

20 dBi Gain, 32.9-50.1 GHz, WR22 Standard Gain Horn with UG383/U Flange

Datasheet

Add to RFQ

RH22-25

25 dBi Gain, 32.9-50.1 GHz, WR22 Standard Gain Horn with UG383/U Flange

Datasheet

Add to RFQ

RH28-10

10 dBi Gain, 26.3-40 GHz, WR28 Standard Gain Horn with UBR320 Flange

Datasheet

Add to RFQ

Show 20

Show 40

Show 60

Show 80

123...7

P/N	Waveguide Size	Frequency Range	Gain	VSWR Max	Flange	RF Port	Add to RFQ
RH10-15	WR10	73.8-110 GHz	15 dBi	1.2	UG387/U-Mod	Waveguide Flange	Add to RFQ
RH10-20	WR10	73.8-110 GHz	20 dBi	1.2	UG387/U-Mod	Waveguide Flange	Add to RFQ
RH10-25	WR10	73.8-110 GHz	25 dBi	1.2	UG387/U-Mod	Waveguide Flange	Add to RFQ
RH12-10	WR12	60.5-91.9 GHz	10 dBi	1.25	UG387/U-Mod	Waveguide Flange	Add to RFQ
RH12-15	WR12	60.5-91.9 GHz	15 dBi	1.2	UG387/U-Mod	Waveguide Flange	Add to RFQ
RH12-20	WR12	60.5-91.9 GHz	20 dBi	1.2	UG387/U-Mod	Waveguide Flange	Add to RFQ
RH12-25	WR12	60.5-91.9 GHz	25 dBi	1.2	UG387/U-Mod	Waveguide Flange	Add to RFQ
RH15-10	WR15	49.8-75.8 GHz	10 dBi	1.25	UG385/U	Waveguide Flange	Add to RFQ
RH15-15	WR15	49.8-75.8 GHz	15 dBi	1.2	UG385/U	Waveguide Flange	Add to RFQ
RH15-20	WR15	49.8-75.8 GHz	20 dBi	1.2	UG385/U	Waveguide Flange	Add to RFQ
RH15-25	WR15	49.8-75.8 GHz	25 dBi	1.2	UG385/U	Waveguide Flange	Add to RFQ
RH19-10	WR19	39.2-59.6 GHz	10 dBi	1.25	UG383/U-Mod	Waveguide Flange	Add to RFQ
RH19-15	WR19	39.2-59.6 GHz	15 dBi	1.2	UG383/U-Mod	Waveguide Flange	Add to RFQ
RH19-20	WR19	39.2-59.6 GHz	20 dBi	1.2	UG383/U-Mod	Waveguide Flange	Add to RFQ
RH19-25	WR19	39.2-59.6 GHz	25 dBi	1.2	UG383/U-Mod	Waveguide Flange	Add to RFQ
RH22-10	WR22	32.9-50.1 GHz	10 dBi	1.25	UG383/U	Waveguide Flange	Add to RFQ
RH22-15	WR22	32.9-50.1 GHz	15 dBi	1.2	UG383/U	Waveguide Flange	Add to RFQ
RH22-20	WR22	32.9-50.1 GHz	20 dBi	1.2	UG383/U	Waveguide Flange	Add to RFQ
RH22-25	WR22	32.9-50.1 GHz	25 dBi	1.2	UG383/U	Waveguide Flange	Add to RFQ
RH28-10	WR28	26.3-40 GHz	10 dBi	1.25	UBR320	Waveguide Flange	Add to RFQ
RH28-15	WR28	26.3-40 GHz	15 dBi	1.2	UBR320	Waveguide Flange	Add to RFQ
RH28-20	WR28	26.3-40 GHz	20 dBi	1.2	UBR320	Waveguide Flange	Add to RFQ
RH28-25	WR28	26.3-40 GHz	25 dBi	1.2	UBR320	Waveguide Flange	Add to RFQ
RH34-10	WR34	21.7-33 GHz	10 dBi	1.25	UBR260	Waveguide Flange	Add to RFQ
RH34-15	WR34	21.7-33 GHz	15 dBi	1.2	UBR260	Waveguide Flange	Add to RFQ
RH34-20	WR34	21.7-33 GHz	20 dBi	1.2	UBR260	Waveguide Flange	Add to RFQ
RH34-25	WR34	21.7-33 GHz	25 dBi	1.2	UBR260	Waveguide Flange	Add to RFQ
RH42-10	WR42	17.6-26.7 GHz	10 dBi	1.25	UBR220	Waveguide Flange	Add to RFQ
RH42-15	WR42	17.6-26.7 GHz	15 dBi	1.2	UBR220	Waveguide Flange	Add to RFQ
RH42-20	WR42	17.6-26.7 GHz	20 dBi	1.2	UBR220	Waveguide Flange	Add to RFQ
RH42-25	WR42	17.6-26.7 GHz	25 dBi	1.2	UBR220	Waveguide Flange	Add to RFQ
RH51-10	WR51	14.5-22 GHz	10 dBi	1.25	UBR180	Waveguide Flange	Add to RFQ
RH51-15	WR51	14.5-22 GHz	15 dBi	1.2	UBR180	Waveguide Flange	Add to RFQ
RH51-20	WR51	14.5-22 GHz	20 dBi	1.2	UBR180	Waveguide Flange	Add to RFQ
RH51-25	WR51	14.5-22 GHz	25 dBi	1.2	UBR180	Waveguide Flange	Add to RFQ
RH62-10	WR62	11.9-18 GHz	10 dBi	1.25	UBR140	Waveguide Flange	Add to RFQ
RH62-15	WR62	11.9-18 GHz	15 dBi	1.2	UBR140	Waveguide Flange	Add to RFQ
RH62-20	WR62	11.9-18 GHz	20 dBi	1.2	UBR140	Waveguide Flange	Add to RFQ
RH62-25	WR62	11.9-18 GHz	25 dBi	1.2	UBR140	Waveguide Flange	Add to RFQ
RH75-10	WR75	9.84-15 GHz	10 dBi	1.25	UBR120	Waveguide Flange	Add to RFQ
RH75-15	WR75	9.84-15 GHz	15 dBi	1.2	UBR120	Waveguide Flange	Add to RFQ
RH75-20	WR75	9.84-15 GHz	20 dBi	1.2	UBR120	Waveguide Flange	Add to RFQ
RH75-25	WR75	9.84-15 GHz	25 dBi	1.2	UBR120	Waveguide Flange	Add to RFQ
RH90-10	WR90	8.2-12.5 GHz	10 dBi	1.25	UBR100	Waveguide Flange	Add to RFQ
RH90-15	WR90	8.2-12.5 GHz	15 dBi	1.2	UBR100	Waveguide Flange	Add to RFQ
RH90-20	WR90	8.2-12.5 GHz	20 dBi	1.2	UBR100	Waveguide Flange	Add to RFQ
RH90-25	WR90	8.2-12.5 GHz	25 dBi	1.2	UBR100	Waveguide Flange	Add to RFQ
RH112-10	WR112	6.57-9.99 GHz	10 dBi	1.25	UBR84	Waveguide Flange	Add to RFQ
RH112-15	WR112	6.57-9.99 GHz	15 dBi	1.2	UBR84	Waveguide Flange	Add to RFQ
RH112-20	WR112	6.57-9.99 GHz	20 dBi	1.2	UBR84	Waveguide Flange	Add to RFQ
RH137-10	WR137	5.38-8.17 GHz	10 dBi	1.25	UDR70	Waveguide Flange	Add to RFQ
RH137-15	WR137	5.38-8.17 GHz	15 dBi	1.2	UDR70	Waveguide Flange	Add to RFQ
RH137-20	WR137	5.38-8.17 GHz	20 dBi	1.2	UDR70	Waveguide Flange	Add to RFQ
RH159-10	WR159	4.64-7.05 GHz	10 dBi	1.25	UDR58	Waveguide Flange	Add to RFQ
RH159-15	WR159	4.64-7.05 GHz	15 dBi	1.2	UDR58	Waveguide Flange	Add to RFQ
RH159-20	WR159	4.64-7.05 GHz	20 dBi	1.2	UDR58	Waveguide Flange	Add to RFQ
RH187-10	WR187	3.94-5.99 GHz	10 dBi	1.25	UDR48	Waveguide Flange	Add to RFQ
RH187-15	WR187	3.94-5.99 GHz	15 dBi	1.2	UDR48	Waveguide Flange	Add to RFQ
RH187-20	WR187	3.94-5.99 GHz	20 dBi	1.2	UDR48	Waveguide Flange	Add to RFQ
RH229-10	WR229	3.22-4.9 GHz	10 dBi	1.25	UDR40	Waveguide Flange	Add to RFQ
RH229-15	WR229	3.22-4.9 GHz	15 dBi	1.2	UDR40	Waveguide Flange	Add to RFQ
RH229-20	WR229	3.22-4.9 GHz	20 dBi	1.2	UDR40	Waveguide Flange	Add to RFQ
RH284-10	WR284	2.6-3.95 GHz	10 dBi	1.25	UDR32	Waveguide Flange	Add to RFQ
RH284-15	WR284	2.6-3.95 GHz	15 dBi	1.2	UDR32	Waveguide Flange	Add to RFQ
RH284-20	WR284	2.6-3.95 GHz	20 dBi	1.2	UDR32	Waveguide Flange	Add to RFQ
RH10-1-15	WR10	73.8-110 GHz	15 dBi	1.5	UG387/U-Mod	1.0mm Female	Add to RFQ
RH10-1-20	WR10	73.8-110 GHz	20 dBi	1.5	UG387/U-Mod	1.0mm Female	Add to RFQ
RH10-1-25	WR10	73.8-110 GHz	25 dBi	1.5	UG387/U-Mod	1.0mm Female	Add to RFQ
RH12-1-10	WR12	60.5-91.9 GHz	10 dBi	1.5	UG387/U-Mod	1.0mm Female	Add to RFQ
RH12-1-15	WR12	60.5-91.9 GHz	15 dBi	1.5	UG387/U-Mod	1.0mm Female	Add to RFQ
RH12-1-20	WR12	60.5-91.9 GHz	20 dBi	1.5	UG387/U-Mod	1.0mm Female	Add to RFQ
RH12-1-25	WR12	60.5-91.9 GHz	25 dBi	1.5	UG387/U-Mod	1.0mm Female	Add to RFQ
RH15-185-10	WR15	49.8-70 GHz	10 dBi	1.5	UG385/U	1.85mm Female	Add to RFQ
RH15-185-15	WR15	49.8-70 GHz	15 dBi	1.5	UG385/U	1.85mm Female	Add to RFQ
RH15-185-20	WR15	49.8-70 GHz	20 dBi	1.5	UG385/U	1.85mm Female	Add to RFQ
RH15-185-25	WR15	49.8-70 GHz	25 dBi	1.5	UG385/U	1.85mm Female	Add to RFQ
RH19-185-10	WR19	39.2-59.6 GHz	10 dBi	1.4	UG383/U-Mod	1.85mm Female	Add to RFQ
RH19-185-15	WR19	39.2-59.6 GHz	15 dBi	1.3	UG383/U-Mod	1.85mm Female	Add to RFQ
RH19-185-20	WR19	39.2-59.6 GHz	20 dBi	1.3	UG383/U-Mod	1.85mm Female	Add to RFQ
RH19-185-25	WR19	39.2-59.6 GHz	25 dBi	1.3	UG383/U-Mod	1.85mm Female	Add to RFQ
RH22-24-10	WR22	32.9-50.1 GHz	10 dBi	1.4	UG383/U	2.4mm Female	Add to RFQ
RH22-24-15	WR22	32.9-50.1 GHz	15 dBi	1.3	UG383/U	2.4mm Female	Add to RFQ
RH22-24-20	WR22	32.9-50.1 GHz	20 dBi	1.3	UG383/U	2.4mm Female	Add to RFQ
RH22-24-25	WR22	32.9-50.1 GHz	25 dBi	1.3	UG383/U	2.4mm Female	Add to RFQ
RH28-292-10	WR28	26.3-40 GHz	10 dBi	1.4	UBR320	2.92mm Female	Add to RFQ
RH28-292-15	WR28	26.3-40 GHz	15 dBi	1.3	UBR320	2.92mm Female	Add to RFQ
RH28-292-20	WR28	26.3-40 GHz	20 dBi	1.3	UBR320	2.92mm Female	Add to RFQ
RH28-292-25	WR28	26.3-40 GHz	25 dBi	1.3	UBR320	2.92mm Female	Add to RFQ
RH34-292-10	WR34	21.7-33 GHz	10 dBi	1.4	UBR260	2.92mm Female	Add to RFQ
RH34-292-15	WR34	21.7-33 GHz	15 dBi	1.3	UBR260	2.92mm Female	Add to RFQ
RH34-292-20	WR34	21.7-33 GHz	20 dBi	1.3	UBR260	2.92mm Female	Add to RFQ
RH34-292-25	WR34	21.7-33 GHz	25 dBi	1.3	UBR260	2.92mm Female	Add to RFQ
RH42-292-10	WR42	17.6-26.7 GHz	10 dBi	1.4	UBR220	2.92mm Female	Add to RFQ
RH42-292-15	WR42	17.6-26.7 GHz	15 dBi	1.3	UBR220	2.92mm Female	Add to RFQ
RH42-292-20	WR42	17.6-26.7 GHz	20 dBi	1.3	UBR220	2.92mm Female	Add to RFQ
RH42-292-25	WR42	17.6-26.7 GHz	25 dBi	1.3	UBR220	2.92mm Female	Add to RFQ
RH51-SMA-10	WR51	14.5-22 GHz	10 dBi	1.4	UBR180	SMA Female	Add to RFQ
RH51-SMA-15	WR51	14.5-22 GHz	15 dBi	1.3	UBR180	SMA Female	Add to RFQ
RH51-SMA-20	WR51	14.5-22 GHz	20 dBi	1.3	UBR180	SMA Female	Add to RFQ
RH51-SMA-25	WR51	14.5-22 GHz	25 dBi	1.3	UBR180	SMA Female	Add to RFQ
RH62-SMA-10	WR62	11.9-18 GHz	10 dBi	1.4	UBR140	SMA Female	Add to RFQ
RH62-SMA-15	WR62	11.9-18 GHz	15 dBi	1.3	UBR140	SMA Female	Add to RFQ
RH62-SMA-20	WR62	11.9-18 GHz	20 dBi	1.3	UBR140	SMA Female	Add to RFQ
RH62-SMA-25	WR62	11.9-18 GHz	25 dBi	1.3	UBR140	SMA Female	Add to RFQ
RH75-SMA-10	WR75	9.84-15 GHz	10 dBi	1.3	UBR120	SMA Female	Add to RFQ
RH75-SMA-15	WR75	9.84-15 GHz	15 dBi	1.2	UBR120	SMA Female	Add to RFQ
RH75-SMA-20	WR75	9.84-15 GHz	20 dBi	1.2	UBR120	SMA Female	Add to RFQ
RH75-SMA-25	WR75	9.84-15 GHz	25 dBi	1.2	UBR120	SMA Female	Add to RFQ
RH90-SMA-10	WR90	8.2-12.5 GHz	10 dBi	1.4	UBR100	SMA Female	Add to RFQ
RH90-SMA-15	WR90	8.2-12.5 GHz	15 dBi	1.3	UBR100	SMA Female	Add to RFQ
RH90-SMA-20	WR90	8.2-12.5 GHz	20 dBi	1.3	UBR100	SMA Female	Add to RFQ
RH90-SMA-25	WR90	8.2-12.5 GHz	25 dBi	1.3	UBR100	SMA Female	Add to RFQ
RH112-N-10	WR112	6.57-9.99 GHz	10 dBi	1.4	UBR84	N Female	Add to RFQ
RH112-N-15	WR112	6.57-9.99 GHz	15 dBi	1.3	UBR84	N Female	Add to RFQ
RH112-N-20	WR112	6.57-9.99 GHz	20 dBi	1.3	UBR84	N Female	Add to RFQ
RH137-SMA-10	WR137	5.38-8.17 GHz	10 dBi	1.4	UDR70	SMA Female	Add to RFQ
RH137-SMA-15	WR137	5.38-8.17 GHz	15 dBi	1.3	UDR70	SMA Female	Add to RFQ
RH137-SMA-20	WR137	5.38-8.17 GHz	20 dBi	1.3	UDR70	SMA Female	Add to RFQ
RH159-SMA-10	WR159	4.64-7.05 GHz	10 dBi	1.4	UDR58	SMA Female	Add to RFQ
RH159-SMA-15	WR159	4.64-7.05 GHz	15 dBi	1.3	UDR58	SMA Female	Add to RFQ
RH159-SMA-20	WR159	4.64-7.05 GHz	20 dBi	1.3	UDR58	SMA Female	Add to RFQ
RH187-SMA-10	WR187	3.94-5.99 GHz	10 dBi	1.4	UDR48	SMA Female	Add to RFQ
RH187-SMA-15	WR187	3.94-5.99 GHz	15 dBi	1.3	UDR48	SMA Female	Add to RFQ
RH187-SMA-20	WR187	3.94-5.99 GHz	20 dBi	1.3	UDR48	SMA Female	Add to RFQ
RH229-SMA-10	WR229	3.22-4.9 GHz	10 dBi	1.4	UDR40	SMA Female	Add to RFQ
RH229-SMA-15	WR229	3.22-4.9 GHz	15 dBi	1.3	UDR40	SMA Female	Add to RFQ
RH229-SMA-20	WR229	3.22-4.9 GHz	20 dBi	1.3	UDR40	SMA Female	Add to RFQ
RH284-N-10	WR284	2.6-3.95 GHz	10 dBi	1.4	UDR32	N Female	Add to RFQ
RH284-N-15	WR284	2.6-3.95 GHz	15 dBi	1.3	UDR32	N Female	Add to RFQ
RH284-N-20	WR284	2.6-3.95 GHz	20 dBi	1.3	UDR32	N Female	Add to RFQ

Language

Language
