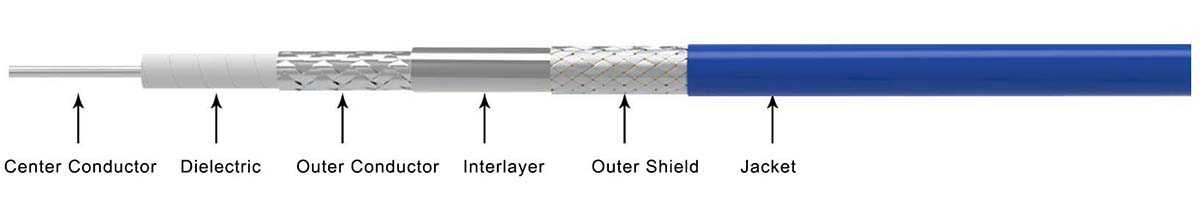

FL series from RF ONE are high flex life low loss cables with max operating frequency options of 18 GHz, 26.5 GHz. These cables are highly robust with triple shield construction of woven flat braid, foil, and round braid, delivering excellent shielding effectiveness and high pull strength. FL series cable assemblies can be widely used in both interconnection and test applications, where low loss and harsh handling are required.
Features:
➤ Please check our Cable Cross Reference Table VS other major cable vendors.
| P/N | Frequency Max | Outer Diameter | Static Bend Radius | Loss at Max Freq | Power at Max Freq | Add to RFQ |
|---|---|---|---|---|---|---|

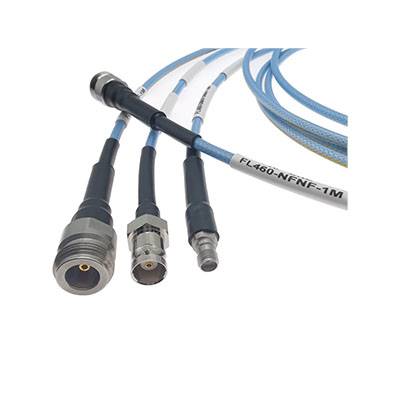

| FL460 | 26.5 GHz | 4.6 mm | 20 mm | 1.8 dB/m | 128 W | Add to RFQ |

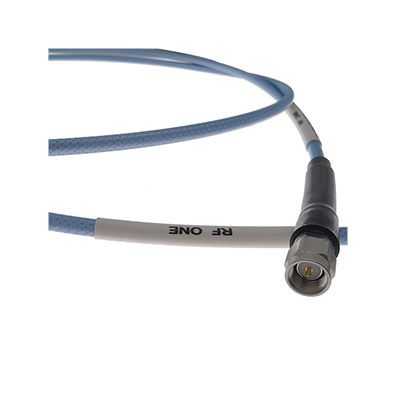

| FL520 | 18 GHz | 5.2 mm | 25 mm | 1.3 dB/m | 166 W | Add to RFQ |

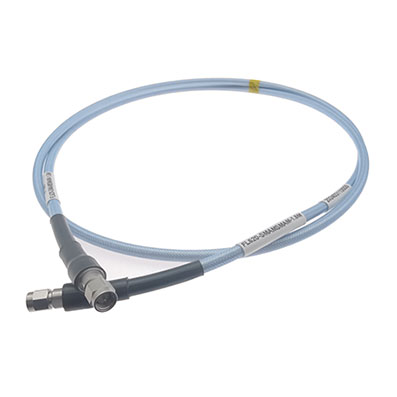

| FL620 | 18 GHz | 6.2 mm | 32 mm | 1 dB/m | 202 W | Add to RFQ |
