RF ONE provides a comprehensive selection of 1.0mm adapters, covering in-series and between-series configurations (1.0mm to 0.8mm, 1.85mm, 2.4mm, and 2.92mm). Designed to deliver ultra-low VSWR and exceptional signal integrity, every adapter is VNA tested and shipped with its individual S-parameter plot for guaranteed performance.
| P/N | Connection Type | Freq Range | Connector 1 | Connector 2 | Body Style | VSWR Max | Add to RFQ |
|---|---|---|---|---|---|---|---|
|
A11001B |
In Series | DC-110 GHz | 1.0mm Female | 1.0mm Female | Straight | 1.35 | Add to RFQ |
|
A11002B |
In Series | DC-110 GHz | 1.0mm Male | 1.0mm Female | Straight | 1.35 | Add to RFQ |
|
A11003B |
In Series | DC-110 GHz | 1.0mm Male | 1.0mm Male | Straight | 1.35 | Add to RFQ |
| A11001P | In Series | DC-110 GHz | 1.0mm Female | 1.0mm Female | Straight | 1.35 | Add to RFQ |
| A11001P-F | In Series | DC-110 GHz | 1.0mm Female | 1.0mm Female | 4 Hole Flange | 1.35 | Add to RFQ |
| A11001P-Y | In Series | DC-110 GHz | 1.0mm Female | 1.0mm Female | Bulkhead | 1.35 | Add to RFQ |

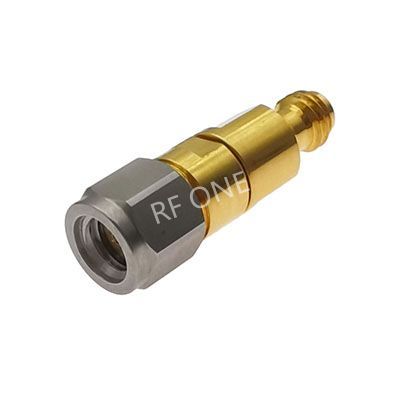

| A11002P | In Series | DC-110 GHz | 1.0mm Male | 1.0mm Female | Straight | 1.35 | Add to RFQ |

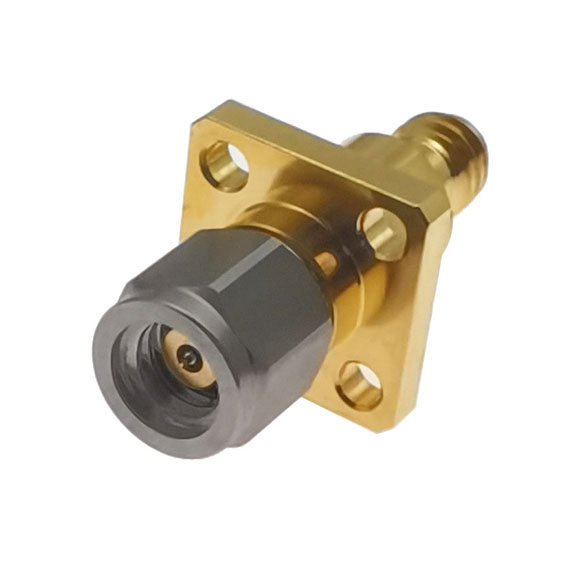

| A11002P-F | In Series | DC-110 GHz | 1.0mm Male | 1.0mm Female | 4 Hole Flange | 1.35 | Add to RFQ |

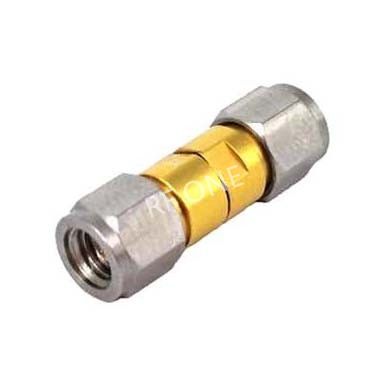

| A11003P | In Series | DC-110 GHz | 1.0mm Male | 1.0mm Male | Straight | 1.35 | Add to RFQ |

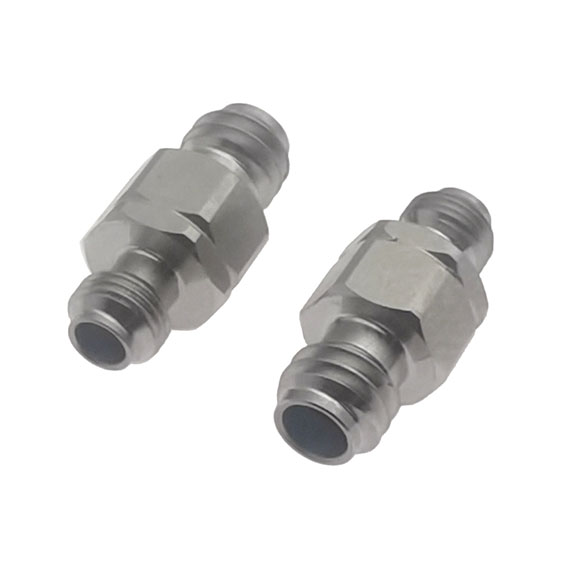

| A11004B | Between Series | DC-110 GHz | 0.8mm Female | 1.0mm Female | Straight | 1.35 | Add to RFQ |
| A11005B | Between Series | DC-110 GHz | 0.8mm Female | 1.0mm Male | Straight | 1.35 | Add to RFQ |
| A11006B | Between Series | DC-110 GHz | 0.8mm Male | 1.0mm Female | Straight | 1.35 | Add to RFQ |

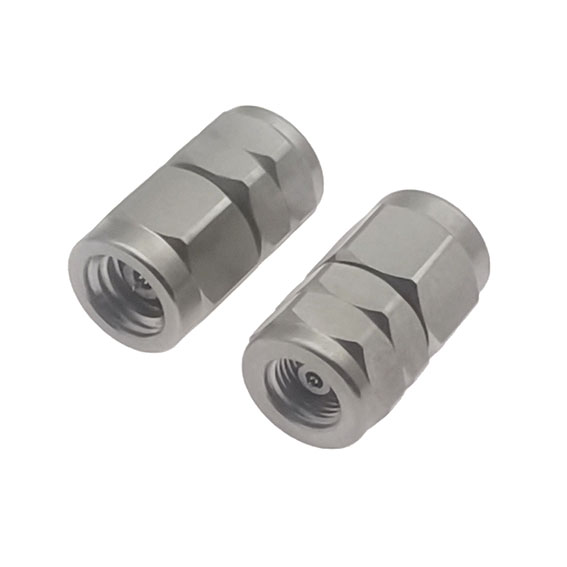

| A11007B | Between Series | DC-110 GHz | 0.8mm Male | 1.0mm Male | Straight | 1.35 | Add to RFQ |
| A11010B | Between Series | DC-100 GHz | 1.0mm Male | SMPS Female | Straight | 1.4 | Add to RFQ |
| A11011B | Between Series | DC-100 GHz | 1.0mm Male | SMPS Male | Straight | 1.4 | Add to RFQ |
|

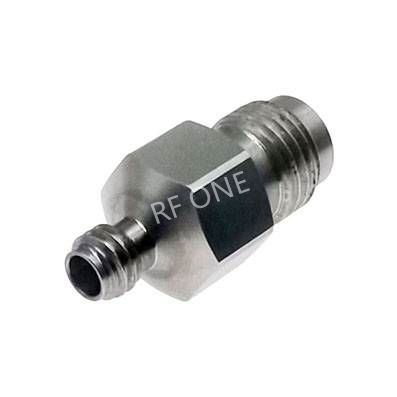

A6704B |
Between Series | DC-67 GHz | 1.0mm Female | 1.85mm Female | Straight | 1.25 | Add to RFQ |
|

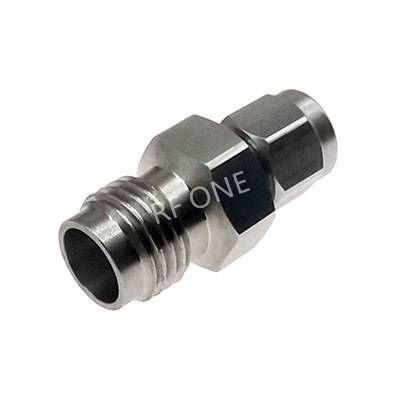

A6705B |
Between Series | DC-67 GHz | 1.0mm Male | 1.85mm Female | Straight | 1.25 | Add to RFQ |
|

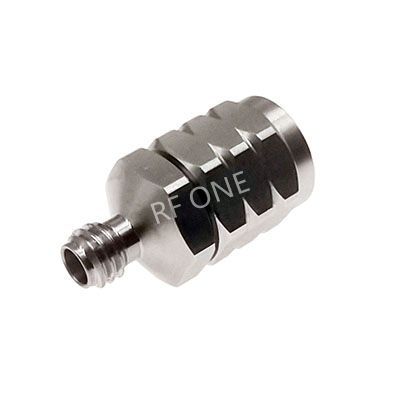

A6706B |
Between Series | DC-67 GHz | 1.0mm Female | 1.85mm Male | Straight | 1.25 | Add to RFQ |
|

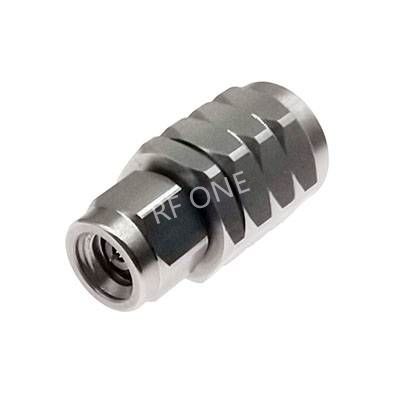

A6707B |
Between Series | DC-67 GHz | 1.0mm Male | 1.85mm Male | Straight | 1.25 | Add to RFQ |

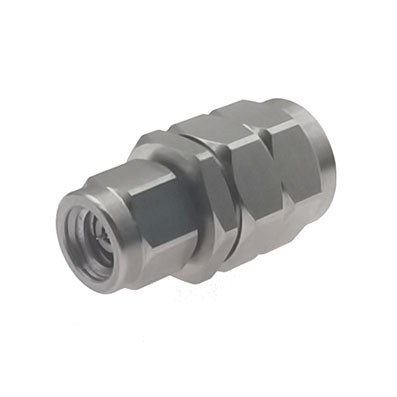

| A5008B | Between Series | DC-50 GHz | 1.0mm Male | 2.4mm Male | Straight | 1.25 | Add to RFQ |

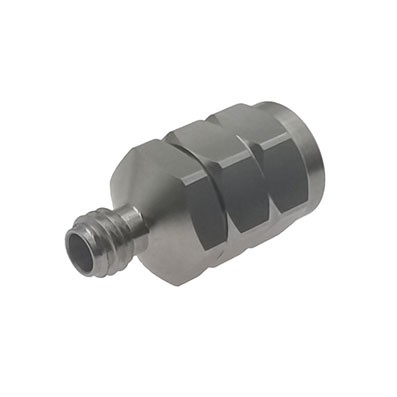

| A5009B | Between Series | DC-50 GHz | 1.0mm Female | 2.4mm Male | Straight | 1.25 | Add to RFQ |

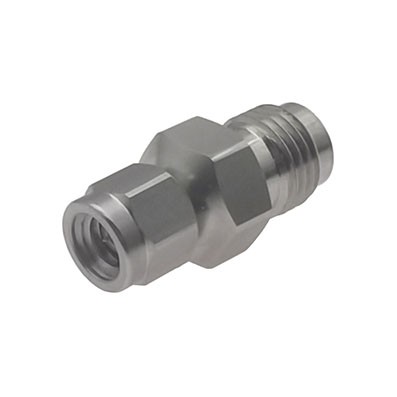

| A5010B | Between Series | DC-50 GHz | 1.0mm Male | 2.4mm Female | Straight | 1.25 | Add to RFQ |
| A5011B | Between Series | DC-50 GHz | 1.0mm Female | 2.4mm Female | Straight | 1.25 | Add to RFQ |
| A4047B | Between Series | DC-40 GHz | 1.0mm Male | 2.92mm Male | Straight | 1.15 | Add to RFQ |
| A4048B | Between Series | DC-40 GHz | 1.0mm Male | 2.92mm Female | Straight | 1.15 | Add to RFQ |
| A4049B | Between Series | DC-40 GHz | 1.0mm Female | 2.92mm Male | Straight | 1.15 | Add to RFQ |
| A4050B | Between Series | DC-40 GHz | 1.0mm Female | 2.92mm Female | Straight | 1.15 | Add to RFQ |
| AHS-1F1F-1 | In Series | DC-110 GHz | 1.0mm Female | 1.0mm Female | Bulkhead Hermetically | 1.65 | Add to RFQ |
