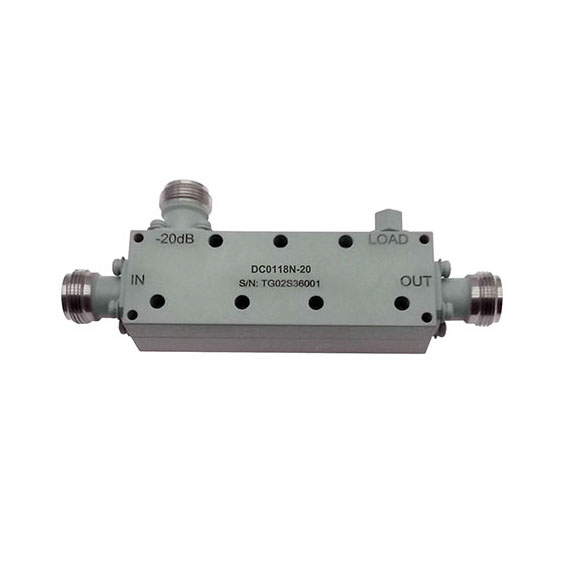

Generic photo used for illustration purposes only.

20 dB N Directional Coupler 1-18 GHz

  • Frequency Range:1-18 GHz
  • Coupling:20±1.0 dB
  • Coupling Flatness:±1.0 dB
  • Directivity Min:12 dB
  • VSWR Max:1.5
  • Power Input Max:50 W
  • Connector:N
  • Description
    DC0118N-20 from RF ONE is a wide band 20 dB directional coupler, covering 1 to 18 GHz and rated 50 watts. Connectors are N female. It offers excellent directivity, return loss and flat coupling response, ideal for applications in return loss measurements, power leveling and signal monitoring.
