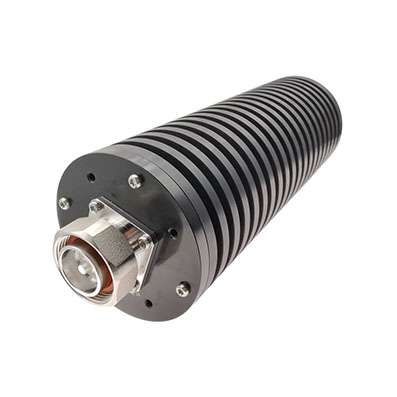

7/16 DIN Male Low PIM Termination 380-6000 MHz 100 Watts -160 dBc IP67

P/N:RTL04100D2
  • Average Power:100 W
  • Connector:7/16 DIN Male
  • Frequency Range:380-6000 MHz
  • VSWR Max:1.3
  • 3rd PIM Max:-160 dBc
  • Description
    RTL04100D2 from RF ONE is 7/16 DIN male low PIM cable termination load operating 380 to 6000 MHz and rated for 100 Watts. It provides extra low PIM performance with typical -166 dBc and less than -160 dBc. They are perfect for in-building passive, active DAS and small cell systems applications.
