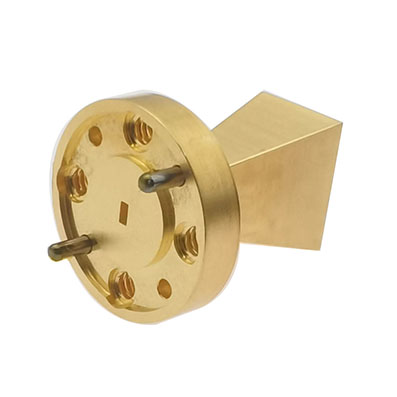

Generic photo used for illustration purposes only.

15 dBi Gain, 73.8-110 GHz, WR10 Standard Gain Horn with UG387/U-Mod Flange

  • Series:Waveguide Standard Gain Horn Antennas
  • Waveguide Size:WR10
  • Frequency Range:73.8-110 GHz
  • Gain:15 dBi
  • VSWR Max:1.2
  • Flange:UG387/U-Mod
  • RF Port:Waveguide Flange
  • Description
    RH10-15 from RF ONE is a standard gain horn antenna that operates from 73.8-110 GHz with a nominal 15 dBi gain. The input of this antenna is a WR10 waveguide with UG387/U-Mod round cover flange. RF ONE offers a complete line of high quality standard gain horn antennas covering the waveguide sizes WR10 to WR284, with the gain of 10 dBi, 15 dBi, 20 dBi and 25 dBi.
