WR229 Waveguide Switch, DPDT, Latching, 24V, UDR40 Flange
WR229 Waveguide Switch, DPDT, Latching, 24V, UDR40 Flange WR229 Waveguide Switch, DPDT, Latching, 24V, UDR40 Flange WR229 Waveguide Switch, DPDT, Latching, 24V, UDR40 Flange
  • WR229 Waveguide Switch, DPDT, Latching, 24V, UDR40 Flange

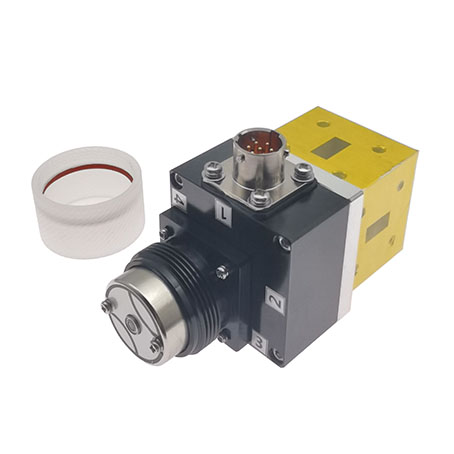

Generic photo used for illustration purposes only.

WR229 Waveguide Switch, DPDT, Latching, 24V, UDR40 Flange

P/N:RD229F-L24A
  • Waveguide Size:WR229
  • Frequency Range:3.22-4.90 GHz
  • VSWR Max:1.15
  • IL Max:0.1 dB
  • Directivity Min:70 dB

    • Datasheet

    Add to RFQ
