WR34 Waveguide Switch, DPDT, Latching, 24V, UBR260 Flange
WR34 Waveguide Switch, DPDT, Latching, 24V, UBR260 Flange WR34 Waveguide Switch, DPDT, Latching, 24V, UBR260 Flange WR34 Waveguide Switch, DPDT, Latching, 24V, UBR260 Flange

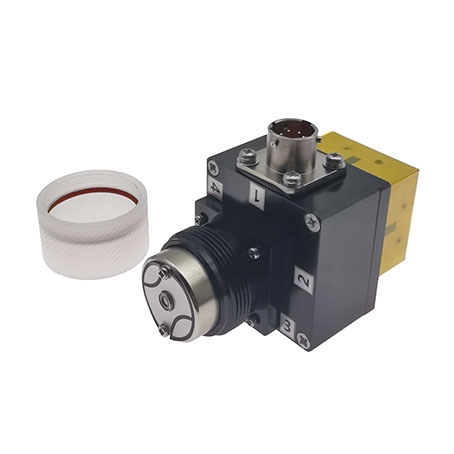

  • WR34 Waveguide Switch, DPDT, Latching, 24V, UBR260 Flange
Generic photo used for illustration purposes only.

WR34 Waveguide Switch, DPDT, Latching, 24V, UBR260 Flange

P/N:RD34F-L24A
  • Waveguide Size:WR34
  • Frequency Range:21.7-33.0 GHz
  • VSWR Max:1.1
  • IL Max:0.15 dB
  • Directivity Min:65 dB

    • Datasheet

    Add to RFQ
