WRD200 Waveguide Switch, DPDT, Latching, 24V
WRD200 Waveguide Switch, DPDT, Latching, 24V WRD200 Waveguide Switch, DPDT, Latching, 24V WRD200 Waveguide Switch, DPDT, Latching, 24V
  • WRD200 Waveguide Switch, DPDT, Latching, 24V

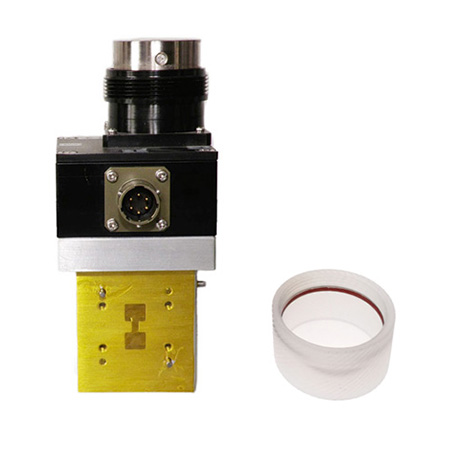

Generic photo used for illustration purposes only.

WRD200 Waveguide Switch, DPDT, Latching, 24V

P/N:RD200F-L24A
  • Waveguide Size:WRD200
  • Frequency Range:2-4.8 GHz
  • VSWR Max:1.2
  • IL Max:0.35 dB
  • Directivity Min:50 dB

    • Datasheet

    Add to RFQ
