Phase Trimmers

Grid

Table

Result: 3

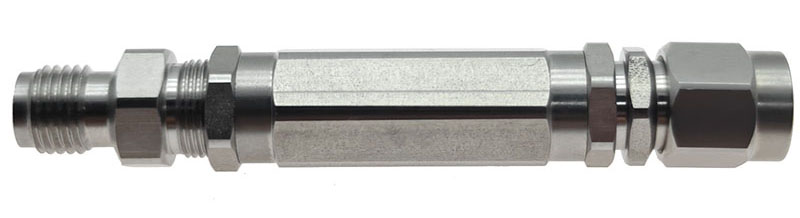

A phase trimmer is a phase shifting device that applies a phase adjustment to an input signal, producing a signal with a phase slightly different than the input. RF ONE is pleased to announce the release of a new high performance series of phase trimmers. Available for 2.4mm, 2.92mm, and SMA coaxial connector inputs. These threaded Phase Trimmers offer extremely low VSWR, low insertion loss, smooth continuous adjustment and come with locking nuts.

View Operating Instructions for Phase Trimmer

RP2701

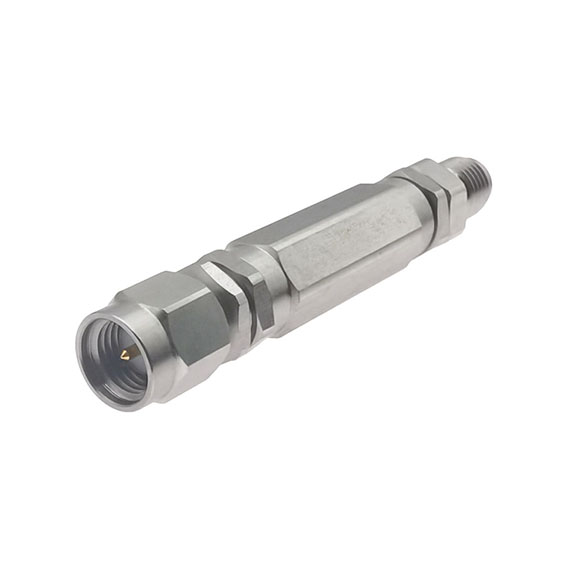

SMA Male to SMA Female Adjustable Phase Trimmer, DC-26.5 GHz

Datasheet

Add to RFQ

RP4001

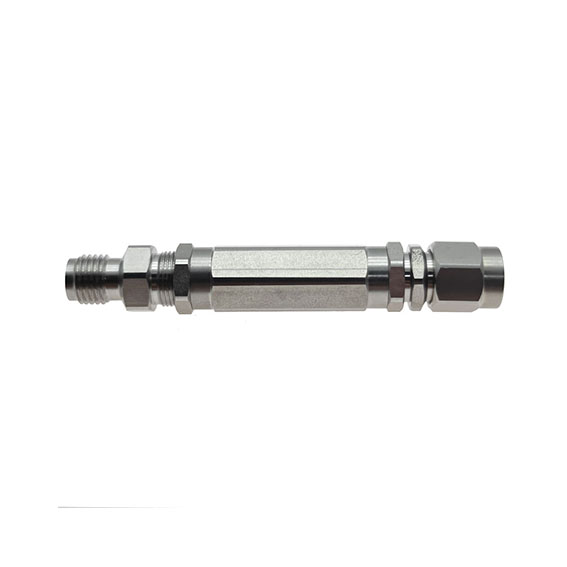

2.92mm Male to 2.92mm Female Adjustable Phase Trimmer, DC-40 GHz

Datasheet

Add to RFQ

RP5001

2.4mm Male to 2.4mm Female Adjustable Phase Trimmer, DC-50 GHz

Datasheet

Add to RFQ

Show 20

Show 40

Show 60

Show 80

P/N	Connector	Frequency Range	VSWR	Insertion Loss	Phase Adjustment Max	Add to RFQ
RP2701	SMA	DC-26.5 GHz	≤1.4	≤0.7 dB	360 Deg.	Add to RFQ
RP4001	2.92mm	DC-40 GHz	≤1.4	≤0.8 dB	360 Deg.	Add to RFQ
RP5001	2.4mm	DC-50 GHz	≤1.5	≤1.0 dB	360 Deg.	Add to RFQ
