SMPS Adapters

Grid

Table

Result: 2

RF ONE provides high-reliability SMPS to 1.0mm adapters with a frequency rating up to 100 GHz and a low VSWR of 1.4, these adapters are the ideal choice for on-wafer testing, broadband signal analysis and advanced communication research.

Filter

Freq Range

DC-100 GHz

Reset Filters

Export to Excel

Submit

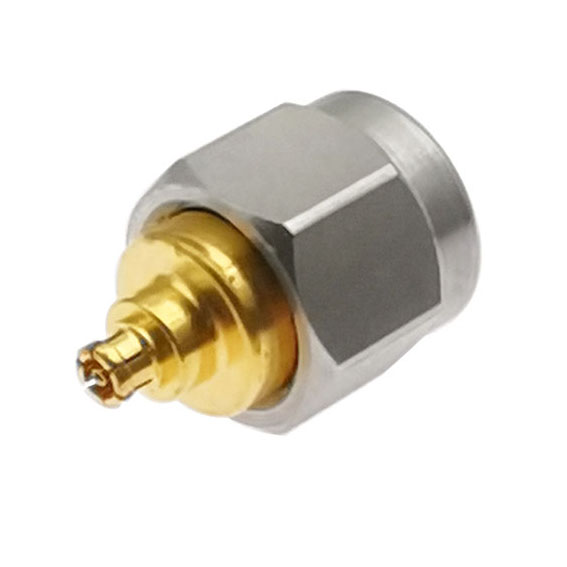

A11010B

1.0mm Male to SMPS Female Adapter

Datasheet

Add to RFQ

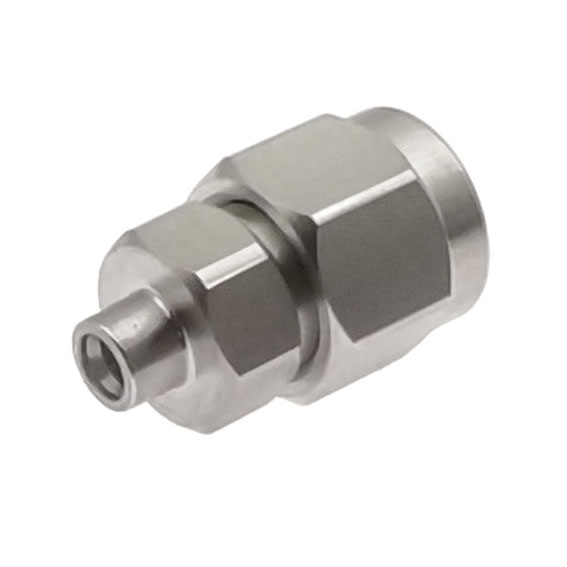

A11011B

1.0mm Male to Full Detent SMPS Male Adapter

Datasheet

Add to RFQ

Show 20

Show 40

Show 60

Show 80

P/N	Connection Type	Freq Range	Connector 1	Connector 2	Body Style	VSWR Max	Add to RFQ
A11010B	Between Series	DC-100 GHz	1.0mm Male	SMPS Female	Straight	1.4	Add to RFQ
A11011B	Between Series	DC-100 GHz	1.0mm Male	SMPS Male	Straight	1.4	Add to RFQ
