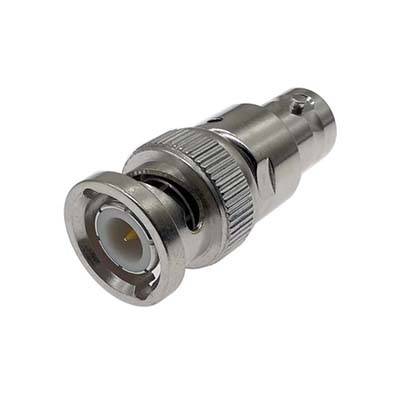

Generic photo used for illustration purposes only.

BNC Inner DC Block 0.01-6 GHz 250 Volts

P/N:DB06B3A
  • Connector:BNC
  • Frequency Min:10 MHz
  • Frequency Max:6 GHz
  • VSWR Max:1.25
  • IL Max:0.5 dB
  • Voltage Max:250 V
  • Description
    DC blocks are used to prevent the flow of DC signal through the circuit while allowing the flow of RF signals. DB06B3A is an inner BNC DC block operating from 10 MHz to 6 GHz with voltage rating 250 Volts. They exhibit excellent return loss and low insertion loss, ideal for test setup isolation, ground loop elimination and signal-to-noise ratio improvement.
