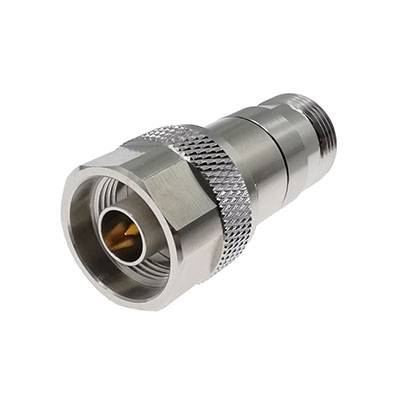

Generic photo used for illustration purposes only.

N Type Inner DC Block 0.01-18 GHz 50 Volts

P/N:DB18N2A
  • Connector:N Type
  • Frequency Min:10 MHz
  • Frequency Max:18 GHz
  • VSWR Max:1.3
  • IL Max:0.6 dB
  • Voltage Max:50 V
  • Description
    DC blocks are used to prevent the flow of DC signal through the circuit while allowing the flow of RF signals. DB18N2A is an inner N Type DC block operating from 10 MHz to 18 GHz with voltage rating 50 Volts. They exhibit excellent return loss and low insertion loss, ideal for test setup isolation, ground loop elimination and signal-to-noise ratio improvement.
