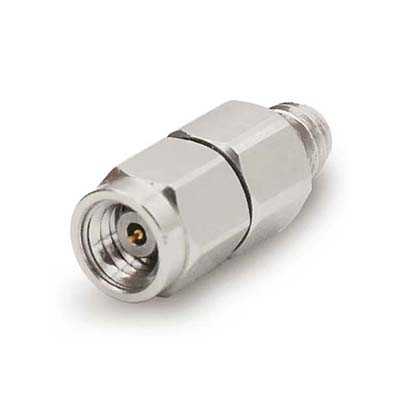

Generic photo used for illustration purposes only.

1.0mm Attenuator 110 GHz 1 Watts

  • Average Power:1 W
  • Frequency Max:110 GHz
  • Connector:1.0mm
  • VSWR Max:1.6
  • Attenuations:3-20 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):15.4(L)
  • Description
    RFHB1-XX from RF ONE is 1.0mm coaxial fixed attenuator operating DC to 110 GHz and rated for 1 Watts, bidirectional. Available from 3 to 20 dB. RoHS Compliant.

    For model RFHB1-XX, replace the XX with the desired attenuation value. Example: RFHB1-10 for 10 dB.
