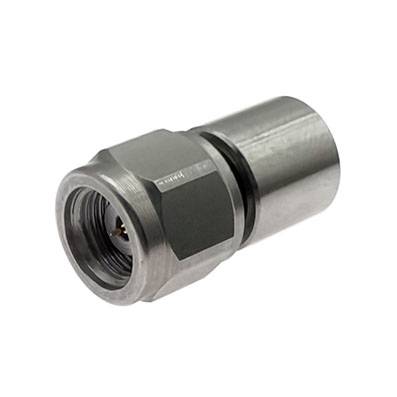

Generic photo used for illustration purposes only.
1.35mm Male Termination DC-90 GHz 1 Watts
P/N:RFT135M
RF ONE newly released the E band 1.35mm precision terminations rated at 1 watts with superior RF and mechanical performance. Test plots are provided for each individual load. The 1.35mm terminations were developed to close the gap between the 1.85mm and 1.0mm terminations, operating to 90 GHz with max VSWR 1.60. These 1.35mm parts are designed in similar rugged structure to 1.85mm connector, up to 3000 mating cycles.
Average Power:
1 W
Frequency Max:
90 GHz
Connector:
1.35mm
Gender:
Male
VSWR Max:
1.6
Shape:
Round
Dimension (mm):
15.1(L)*8.8(φ)
Datasheet
Add to RFQ
