1.5-8 GHz SMA Female High Pass Filter
1.5-8 GHz SMA Female High Pass Filter 1.5-8 GHz SMA Female High Pass Filter 1.5-8 GHz SMA Female High Pass Filter
  • 1.5-8 GHz SMA Female High Pass Filter

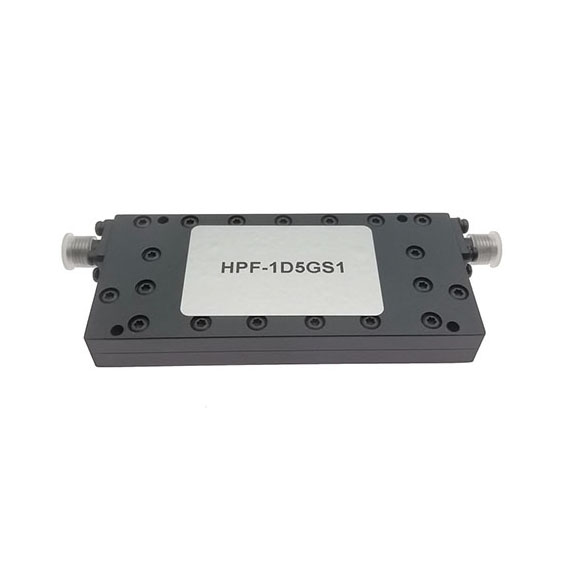

Generic photo used for illustration purposes only.

1.5-8 GHz SMA Female High Pass Filter

P/N:HPF-1D5GS1
  • Passband Frequency:1.5-8.0 GHz
  • Insertion Loss Max:1.0 dB
  • VSWR Max:1.5
  • Reject Frequency:DC-1.28 GHz
  • Rejection Min:60 dB
  • Power Input Max:15 W
  • Connector:SMA

    • Datasheet

    Add to RFQ
