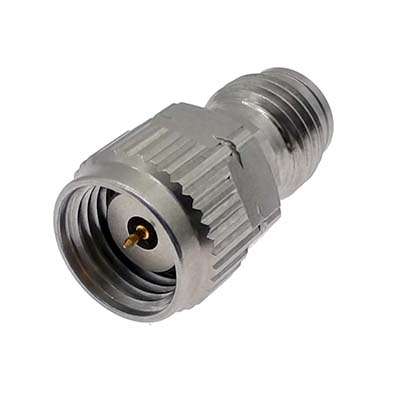

Generic photo used for illustration purposes only.

1.85mm Attenuator 67 GHz 2 Watts

P/N:RFHB67XX185C2
  • Average Power:2 W
  • Frequency Max:67 GHz
  • Connector:1.85mm
  • VSWR Max:1.3
  • Attenuations:1-40 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):16(L)*9(φ)
  • Description
    RFHB67XX185C2 from RF ONE is 1.85mm coaxial fixed attenuator operating DC to 67 GHz and rated for 2 Watts, bidirectional. Available from 1 to 40 dB. RoHS Compliant.

    For model RFHB67XX185C2, replace the XX with the desired attenuation value. Example: RFHB6730185C2 for 30 dB.
