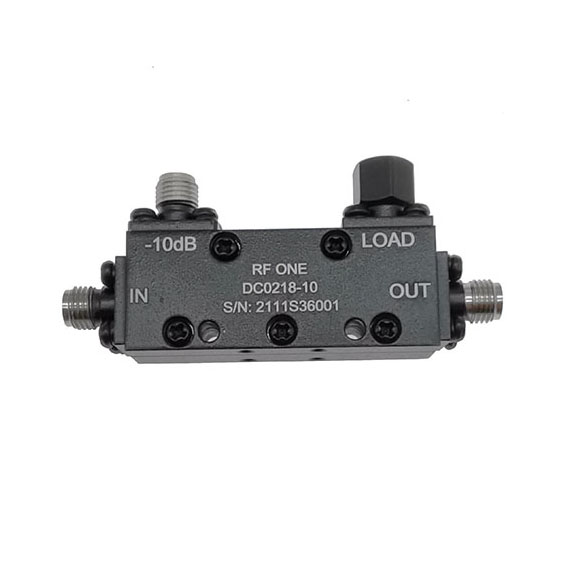

Generic photo used for illustration purposes only.

10 dB SMA Directional Coupler 2-18 GHz

  • Frequency Range:2-18 GHz
  • Coupling:10±1.0 dB
  • Coupling Flatness:±1.0 dB
  • Directivity Min:15 dB
  • VSWR Max:1.5
  • Power Input Max:20 W
  • Connector:SMA
  • Description
    DC0218-10 from RF ONE is a wide band 10 dB directional coupler, covering 2 to 18 GHz and rated 20 watts. Connectors are SMA female. It offers excellent directivity, return loss and flat coupling response, ideal for applications in return loss measurements, power leveling and signal monitoring.
