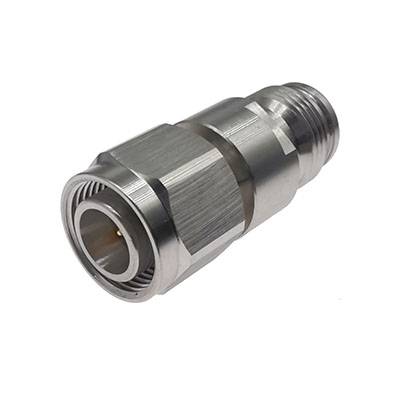

Generic photo used for illustration purposes only.

2.2-5 Attenuator 6 GHz 2 Watts

P/N:RFHB06XXZC2
  • Average Power:2 W
  • Frequency Max:6 GHz
  • Connector:2.2-5
  • VSWR Max:1.25
  • Attenuations:1-60 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):37(L)*16(φ)
  • Description
    RFHB06XXZC2 from RF ONE is 2.2-5 coaxial fixed attenuator operating DC to 6 GHz and rated for 2 Watts, bidirectional. Available from 1 to 60 dB. RoHS Compliant.

    For model RFHB06XXZC2, replace the XX with the desired attenuation value. Example: RFHB0630ZC2 for 30 dB.
