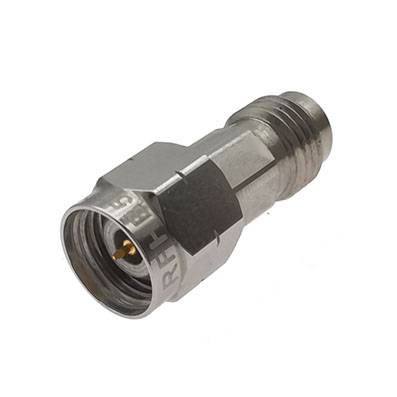

Generic photo used for illustration purposes only.

2.4mm Attenuator 50 GHz 2 Watts

P/N:RFHB50XX24C2A
  • Average Power:2 W
  • Frequency Max:50 GHz
  • Connector:2.4mm
  • VSWR Max:1.3
  • Attenuations:1-30 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):19.7(L)*9(φ)
  • Description
    RFHB50XX24C2A from RF ONE is 2.4mm coaxial fixed attenuator operating DC to 50 GHz and rated for 2 Watts, bidirectional. Available from 1 to 30 dB. RoHS Compliant.

    For model RFHB50XX24C2A, replace the XX with the desired attenuation value. Example: RFHB503024C2A for 30 dB.
