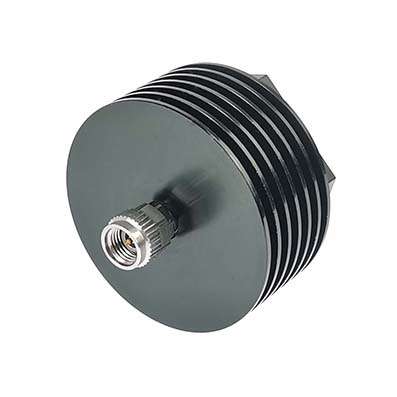

Generic photo used for illustration purposes only.

2.4mm Attenuator 50 GHz 20 Watts

P/N:RFH50XX24D20
  • Average Power:20 W
  • Frequency Max:50 GHz
  • Connector:2.4mm
  • VSWR Max:1.38
  • Attenuations:10-40 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):28.8(L)*40.8(φ)
  • Description
    RFH50XX24D20 from RF ONE is 2.4mm coaxial fixed attenuator operating DC to 50 GHz and rated for 20 Watts, unidirectional. Available from 10 to 40 dB. RoHS Compliant.

    For model RFH50XX24D20, replace the XX with the desired attenuation value. Example: RFH503024D20 for 30 dB.
