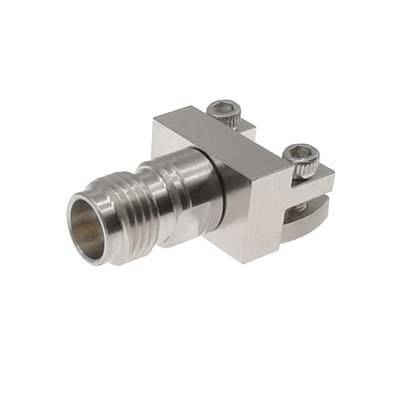

Generic photo used for illustration purposes only.

2.4mm Female End Launch Connector Standard Block Launch Pin .007 Inch

P/N:EL24F-2
  • Connector:2.4mm
  • Gender:Female
  • Frequency Max:50 GHz
  • Body Width:0.5 inch
  • Pin Diameter:0.007 inch
  • Max PCB Thickness:2.5 mm
  • VSWR Max:1.3
  • Description
    EL24F-2 from RF ONE is a 2.4mm female end launch connector with transition to PCB. It operates up to 40 GHz with low VSWR and low insertion loss. EL24F-2 is a low profile design available for microstrip or coplanar printed circuit boards.
