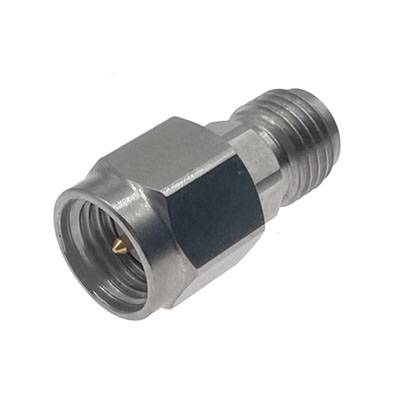

Generic photo used for illustration purposes only.

2.92mm Attenuator 40 GHz 2 Watts

P/N:RFHB40XXKC2A
  • Average Power:2 W
  • Frequency Max:40 GHz
  • Connector:2.92mm
  • VSWR Max:1.25
  • Attenuations:0-30 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):17.2(L)*9(φ)
  • Description
    RFHB40XXKC2A from RF ONE is 2.92mm coaxial fixed attenuator operating DC to 40 GHz and rated for 2 Watts, bidirectional. Available from 0 to 30 dB. RoHS Compliant.

    For model RFHB40XXKC2A, replace the XX with the desired attenuation value. Example: RFHB4030KC2A for 30 dB.
