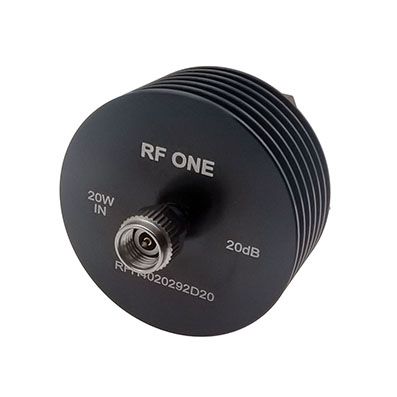

Generic photo used for illustration purposes only.

2.92mm Attenuator 40 GHz 20 Watts

P/N:RFH40XX292D20
  • Average Power:20 W
  • Frequency Max:40 GHz
  • Connector:2.92mm
  • VSWR Max:1.26
  • Attenuations:3-40 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):21.4(L)*40.8(φ)
  • Description
    RFH40XX292D20 from RF ONE is 2.92mm coaxial fixed attenuator operating DC to 40 GHz and rated for 20 Watts, unidirectional. Available from 3 to 40 dB. RoHS Compliant.

    For model RFH40XX292D20, replace the XX with the desired attenuation value. Example: RFH4030292D20 for 30 dB.
