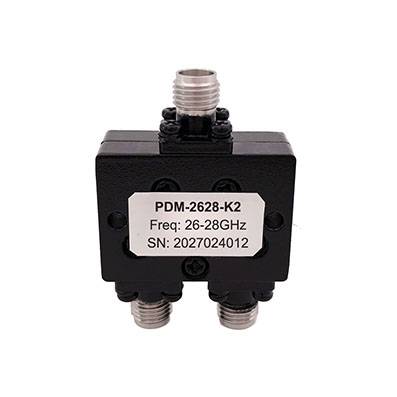

Generic photo used for illustration purposes only.

2 Way 2.92mm Power Divider 26-28 GHz

P/N:PDM-2628-K2
  • Frequency Min:26 GHz
  • Frequency Max:28 GHz
  • Insertion Loss Max:0.6 dB
  • Input VSWR Max:1.4
  • Output VSWR Max:1.4
  • Isolation Min:20 dB
  • Amplitude Balance Max:±0.2 dB
  • Phase Balance Max:±3°
  • Input Power Max:20 W
  • Connector:2.92mm
  • Description
    PDM-2628-K2 is a 2 way power divider/combiner that covers the frequency range of 26-28 GHz. This RF coaxial 2.92mm power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
