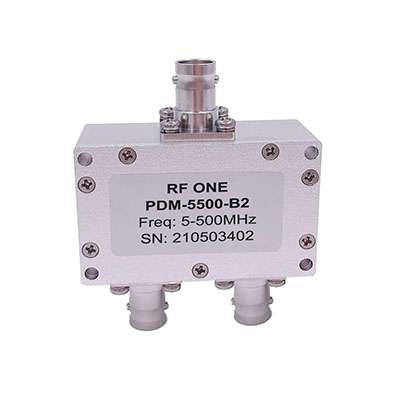

Generic photo used for illustration purposes only.

2 Way BNC Power Divider 5-500 MHz

P/N:PDM-5500-B2
  • Frequency Min:0.005 GHz
  • Frequency Max:0.5 GHz
  • Insertion Loss Max:1.0 dB
  • Input VSWR Max:1.25
  • Output VSWR Max:1.25
  • Isolation Min:20 dB
  • Amplitude Balance Max:±0.3 dB
  • Phase Balance Max:±3°
  • Input Power Max:1 W
  • Connector:BNC
  • Description
    PDM-5500-B2 is a 2 way power divider/combiner that covers the frequency range of 5-500 MHz. This RF coaxial BNC power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 1 watts as a divider. It uses the lumped elements design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
