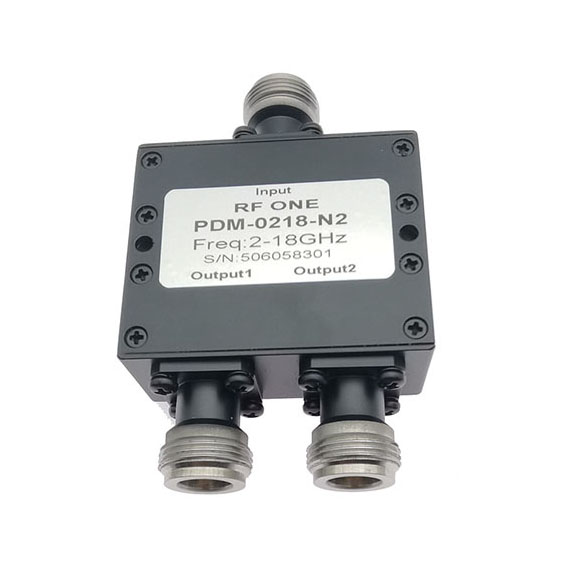

Generic photo used for illustration purposes only.

2 Way N Power Divider 2-18 GHz

P/N:PDM-0218-N2
  • Frequency Min:2 GHz
  • Frequency Max:18 GHz
  • Insertion Loss Max:1.5 dB
  • Input VSWR Max:1.5
  • Output VSWR Max:1.5
  • Isolation Min:17 dB
  • Amplitude Balance Max:±0.3 dB
  • Phase Balance Max:±4°
  • Input Power Max:20 W
  • Connector:N
  • Description
    PDM-0218-N2 is a 2 way power divider/combiner that covers the frequency range of 2-18 GHz. This RF coaxial N type power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
