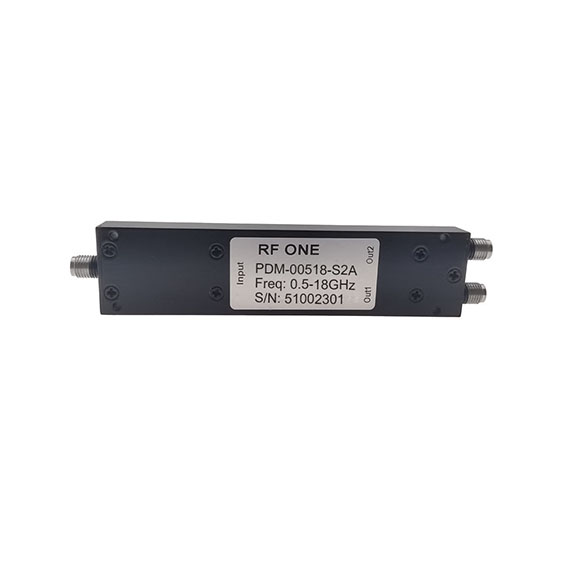

Generic photo used for illustration purposes only.
2 Way SMA Power Divider 0.5-18 GHz
P/N:PDM-00518-S2A
Frequency Min:
0.5 GHz
Frequency Max:
18 GHz
Insertion Loss Max:
1.2 dB
Input VSWR Max:
1.8
Output VSWR Max:
1.35
Isolation Min:
10 dB
Amplitude Balance Max:
±0.3 dB
Phase Balance Max:
±3°
Input Power Max:
20 W
Connector:
SMA
Datasheet
Add to RFQ
