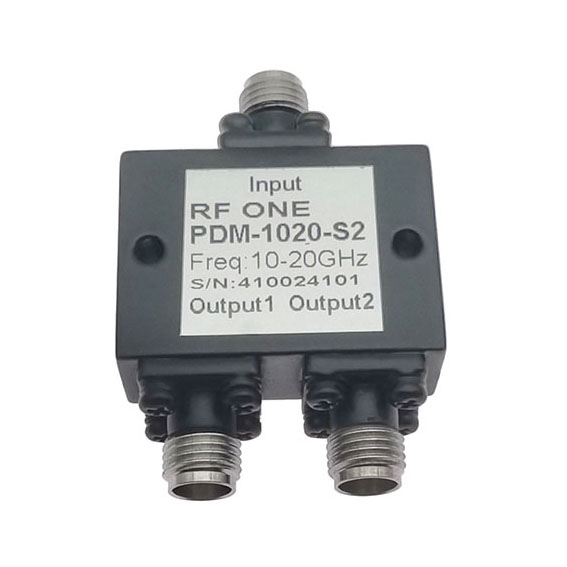

Generic photo used for illustration purposes only.

2 Way SMA Power Divider 10-20 GHz

P/N:PDM-1020-S2
  • Frequency Min:10 GHz
  • Frequency Max:20 GHz
  • Insertion Loss Max:1.2 dB
  • Input VSWR Max:1.4
  • Output VSWR Max:1.4
  • Isolation Min:18 dB
  • Amplitude Balance Max:±0.3 dB
  • Phase Balance Max:±3°
  • Input Power Max:20 W
  • Connector:SMA
  • Description
    PDM-1020-S2 is a 2 way power divider/combiner that covers the frequency range of 10-20 GHz. This RF coaxial SMA power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
