3.5-19 GHz SMA Female High Pass Filter
3.5-19 GHz SMA Female High Pass Filter 3.5-19 GHz SMA Female High Pass Filter 3.5-19 GHz SMA Female High Pass Filter
  • 3.5-19 GHz SMA Female High Pass Filter

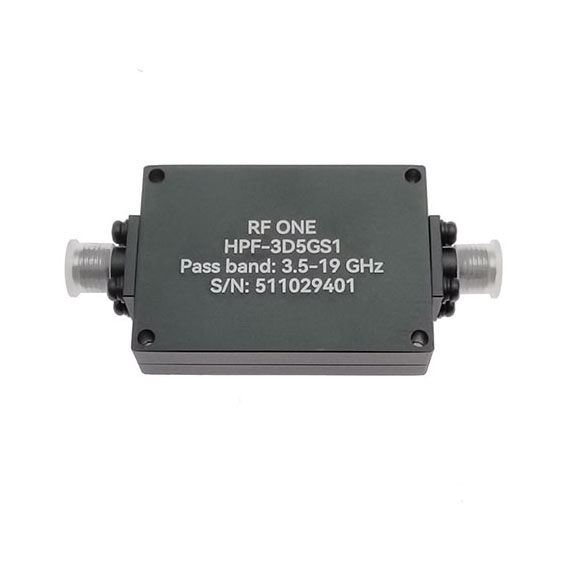

Generic photo used for illustration purposes only.

3.5-19 GHz SMA Female High Pass Filter

P/N:HPF-3D5GS1
  • Passband Frequency:3.5-19 GHz
  • Insertion Loss Max:1.0 dB
  • VSWR Max:1.5
  • Reject Frequency:DC-3.08 GHz
  • Rejection Min:60 dB
  • Power Input Max:15 W
  • Connector:SMA

    • Datasheet

    Add to RFQ
