3.5mm Attenuator 26.5 GHz 25 Watts
3.5mm Attenuator 26.5 GHz 25 Watts 3.5mm Attenuator 26.5 GHz 25 Watts 3.5mm Attenuator 26.5 GHz 25 Watts
  • 3.5mm Attenuator 26.5 GHz 25 Watts

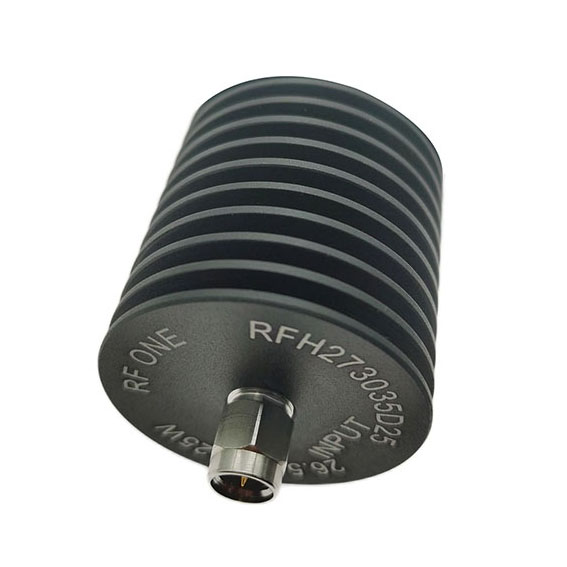

Generic photo used for illustration purposes only.

3.5mm Attenuator 26.5 GHz 25 Watts

P/N:RFH27XX35D25
  • Average Power:25 W
  • Frequency Max:26.5 GHz
  • Connector:3.5mm
  • VSWR Max:1.35
  • Attenuations:1-60 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):40(L)*38(φ)

    • Datasheet

    Add to RFQ
