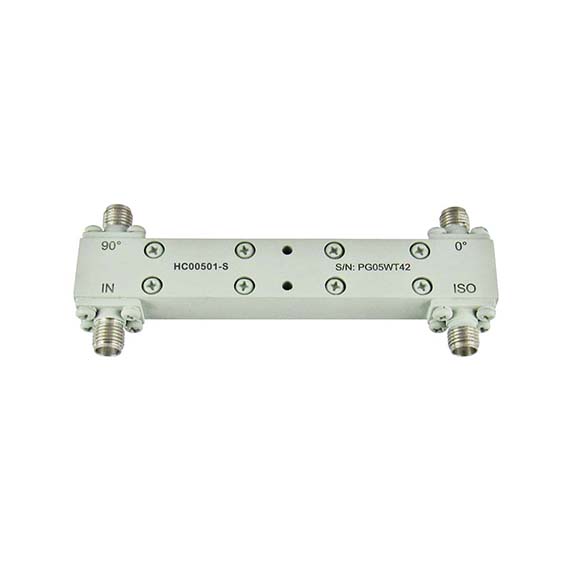

Generic photo used for illustration purposes only.

3 dB SMA 90 Degree Hybrid Coupler 0.5-1 GHz

P/N:HC00501-S
  • Frequency Range:0.5-1 GHz
  • VSWR Max:1.2
  • IL Max:0.3 dB
  • Amplitude Balance Max:±0.5 dB
  • Phase Balance Max:±2°
  • Isolation Min:22 dB
  • Connector:SMA
  • Description
    HC00501-S from RF ONE is a 90 degree 3 dB hybrid coupler operating from 0.5 to 1 GHz with 50 watts power handling. Connectors are SMA female. 3 dB hybrid couplers are useful for equally dividing an input signal into two signals with 90 degree phase difference or combining two signals to a common signal.
