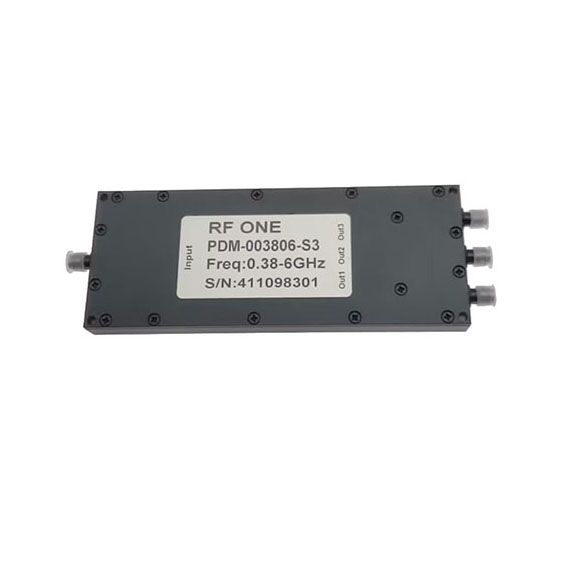

Generic photo used for illustration purposes only.

3 Way SMA Power Divider 0.38-6 GHz

P/N:PDM-003806-S3
  • Frequency Min:0.38 GHz
  • Frequency Max:6 GHz
  • Insertion Loss Max:2.8 dB
  • Input VSWR Max:1.6
  • Output VSWR Max:1.5
  • Isolation Min:18 dB
  • Amplitude Balance Max:±0.9 dB
  • Phase Balance Max:±8°
  • Input Power Max:20 W
  • Connector:SMA
  • Description
    PDM-003806-S3 is a 3 way power divider/combiner that covers the frequency range of 0.38-6 GHz. This RF coaxial SMA power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
