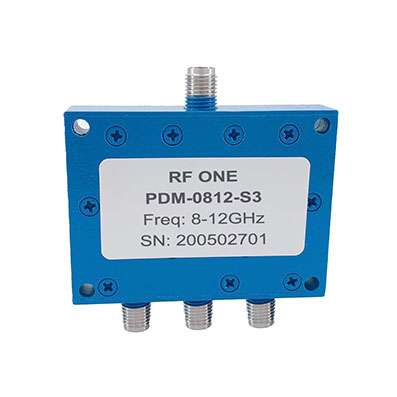

Generic photo used for illustration purposes only.

3 Way SMA Power Divider 8-12 GHz

P/N:PDM-0812-S3
  • Frequency Min:8 GHz
  • Frequency Max:12 GHz
  • Insertion Loss Max:1.0 dB
  • Input VSWR Max:1.4
  • Output VSWR Max:1.4
  • Isolation Min:18 dB
  • Amplitude Balance Max:±0.5 dB
  • Phase Balance Max:±5°
  • Input Power Max:20 W
  • Connector:SMA
  • Description
    PDM-0812-S3 is a 3 way power divider/combiner that covers the frequency range of 8-12 GHz. This RF coaxial SMA power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
