4.25-20 GHz SMA Female High Pass Filter
4.25-20 GHz SMA Female High Pass Filter 4.25-20 GHz SMA Female High Pass Filter 4.25-20 GHz SMA Female High Pass Filter
  • 4.25-20 GHz SMA Female High Pass Filter

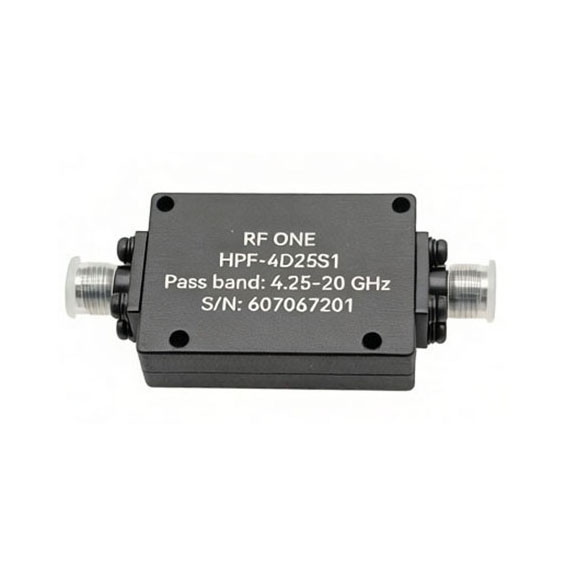

Generic photo used for illustration purposes only.

4.25-20 GHz SMA Female High Pass Filter

P/N:HPF-4D25S1
  • Passband Frequency:4.25-20 GHz
  • Insertion Loss Max:1.0 dB
  • VSWR Max:1.5
  • Reject Frequency:DC-3.78 GHz
  • Rejection Min:60 dB
  • Power Input Max:15 W
  • Connector:SMA

    • Datasheet

    Add to RFQ
