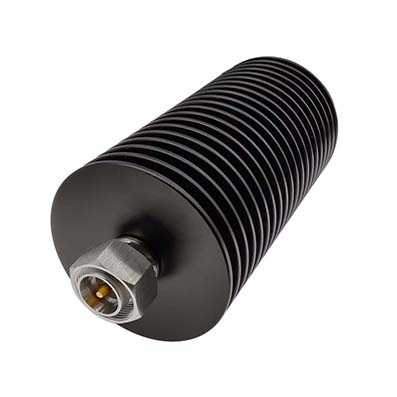

Generic photo used for illustration purposes only.

4.3-10 Attenuator 3 GHz 100 Watts Unidirectional

P/N:RFH03XX4310D100
  • Average Power:100 W
  • Frequency Max:3 GHz
  • Connector:4.3-10
  • VSWR Max:1.2
  • Attenuations:6-60 dB
  • Shape:Round
  • Direction:Unidirectional
  • Dimensions (mm):121(L)*64(φ)
  • Description
    RFH03XX4310D100 from RF ONE is 4.3-10 coaxial fixed attenuator operating DC to 3 GHz and rated for 100 Watts, unidirectional. Available from 6 to 60 dB. RoHS Compliant.

    For model RFH03XX4310D100, replace the XX with the desired attenuation value. Example: RFH03304310D100 for 30 dB.
