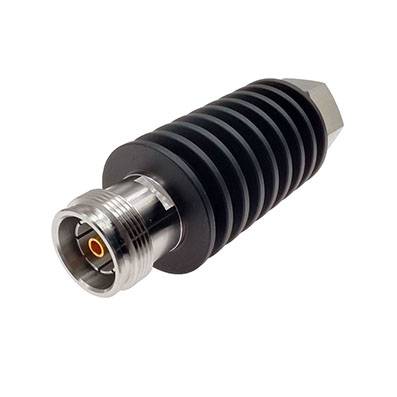

Generic photo used for illustration purposes only.

4.3-10 Attenuator 3 GHz 15 Watts

P/N:RFHB03XX4310C15
  • Average Power:15 W
  • Frequency Max:3 GHz
  • Connector:4.3-10
  • VSWR Max:1.15
  • Attenuations:1-50 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):49.5(L)*25(φ)
  • Description
    RFHB03XX4310C15 from RF ONE is 4.3-10 coaxial fixed attenuator operating DC to 3 GHz and rated for 15 Watts, bidirectional. Available from 1 to 50 dB. RoHS Compliant.

    For model RFHB03XX4310C15, replace the XX with the desired attenuation value. Example: RFHB03304310C15 for 30 dB.
