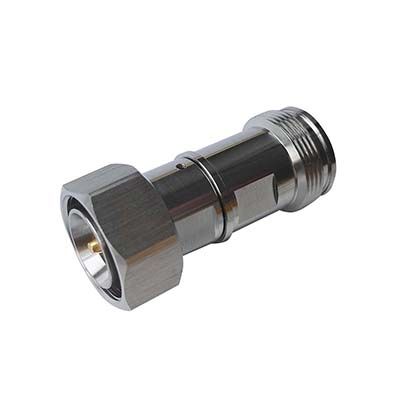

Generic photo used for illustration purposes only.

4.3-10 Attenuator 3 GHz 5 Watts

P/N:RFHB03XX4310C5
  • Average Power:5 W
  • Frequency Max:3 GHz
  • Connector:4.3-10
  • VSWR Max:1.15
  • Attenuations:1-30 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):48(L)*22(φ)
  • Description
    RFHB03XX4310C5 from RF ONE is 4.3-10 coaxial fixed attenuator operating DC to 3 GHz and rated for 5 Watts, bidirectional. Available from 1 to 30 dB. RoHS Compliant.

    For model RFHB03XX4310C5, replace the XX with the desired attenuation value. Example: RFHB03304310C5 for 30 dB.
