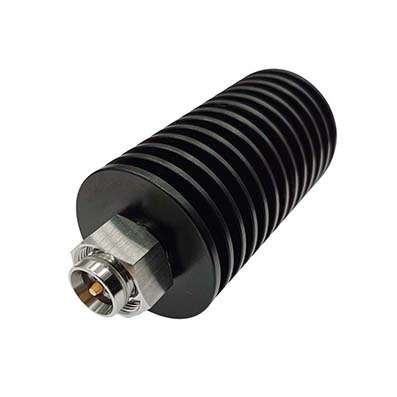

Generic photo used for illustration purposes only.

4.3-10 Attenuator 6 GHz 50 Watts Bidirectional

P/N:RFHB06XX4310C50
  • Average Power:50 W
  • Frequency Max:6 GHz
  • Connector:4.3-10
  • VSWR Max:1.25
  • Attenuations:1-50 dB
  • Shape:Round
  • Direction:Bidirectional
  • Dimensions (mm):79(L)*45(φ)
  • Description
    RFHB06XX4310C50 from RF ONE is 4.3-10 coaxial fixed attenuator operating DC to 6 GHz and rated for 50 Watts, bidirectional. Available from 1 to 50 dB. RoHS Compliant.

    For model RFHB06XX4310C50, replace the XX with the desired attenuation value. Example: RFHB06304310C50 for 30 dB.
