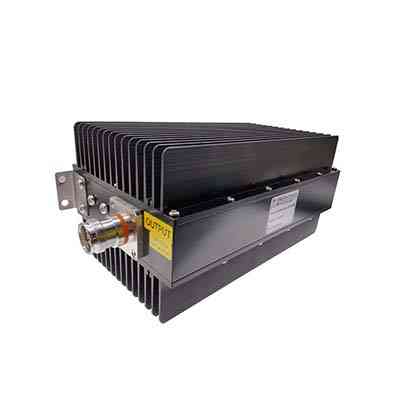

Generic photo used for illustration purposes only.

4.3-10 Low PIM Attenuator 555-6000 MHz 200 Watts -160 dBc

P/N:RALXX200FA-A
  • Average Power:200 W
  • Connector:4.3-10
  • Frequency Range:555-6000 MHz
  • Input Return Loss Min:18 dB
  • 3rd PIM Max:-160 dBc
  • Description
    RALXX200FA-A is 4.3-10 low PIM attenuator with industry leading -160 dBc (min) & -165 dBc (typical) passive intermodulation and covers wide bandwidth from 555-6000 MHz. Power rated 200 watts, Unidirectional. They feature stable attenuation accuracy over high power input and temperature changes, well-suited for applications in wireless base station, in-building passive and active DAS systems etc. Available dB values from 6 dB to 40 dB.

    For model RALXX200FA-A, replace the XX with the desired attenuation value. EXAMPLE: RAL30200FA-A for 30 dB.
