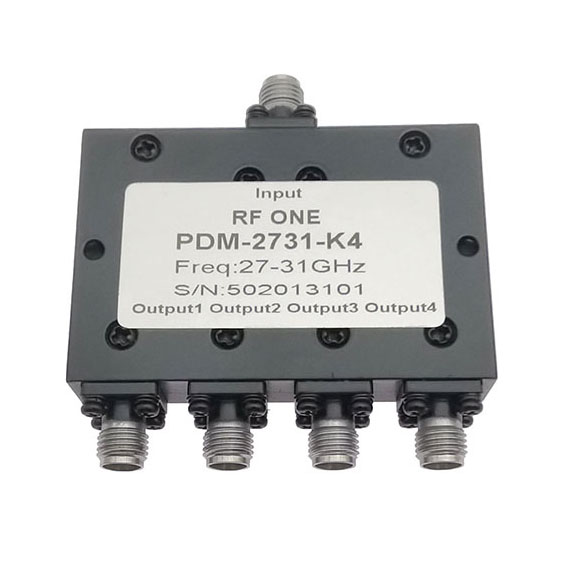

Generic photo used for illustration purposes only.

4 Way 2.92mm Power Divider 27-31 GHz

P/N:PDM-2731-K4
  • Frequency Min:27 GHz
  • Frequency Max:31 GHz
  • Insertion Loss Max:1.0 dB
  • Input VSWR Max:1.5
  • Output VSWR Max:1.5
  • Isolation Min:16 dB
  • Amplitude Balance Max:±0.4 dB
  • Phase Balance Max:±5°
  • Input Power Max:20 W
  • Connector:2.92mm
  • Description
    PDM-2731-K4 is a 4 way power divider/combiner that covers the frequency range of 27-31 GHz. This RF coaxial 2.92mm power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
