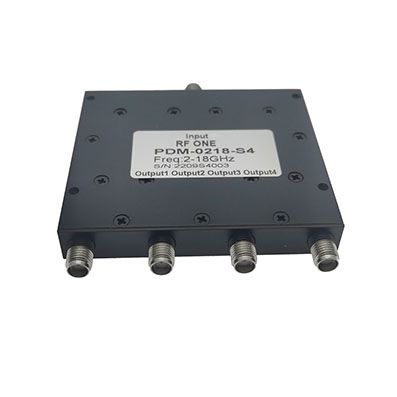

Generic photo used for illustration purposes only.

4 Way SMA Power Divider 2-18 GHz

P/N:PDM-0218-S4
  • Frequency Min:2 GHz
  • Frequency Max:18 GHz
  • Insertion Loss Max:2.0 dB
  • Input VSWR Max:1.5
  • Output VSWR Max:1.4
  • Isolation Min:17 dB
  • Amplitude Balance Max:±0.4 dB
  • Phase Balance Max:±6°
  • Input Power Max:20 W
  • Connector:SMA
  • Description
    PDM-0218-S4 is a 4 way power divider/combiner that covers the frequency range of 2-18 GHz. This RF coaxial SMA power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
