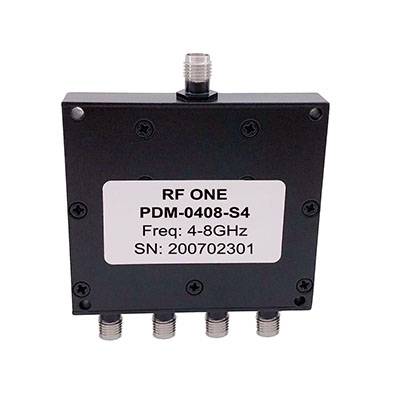

Generic photo used for illustration purposes only.

4 Way SMA Power Divider 4-8 GHz

P/N:PDM-0408-S4
  • Frequency Min:4 GHz
  • Frequency Max:8 GHz
  • Insertion Loss Max:1.0 dB
  • Input VSWR Max:1.35
  • Output VSWR Max:1.25
  • Isolation Min:18 dB
  • Amplitude Balance Max:±0.3 dB
  • Phase Balance Max:±4°
  • Input Power Max:30 W
  • Connector:SMA
  • Description
    PDM-0408-S4 is a 4 way power divider/combiner that covers the frequency range of 4-8 GHz. This RF coaxial SMA power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 30 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
