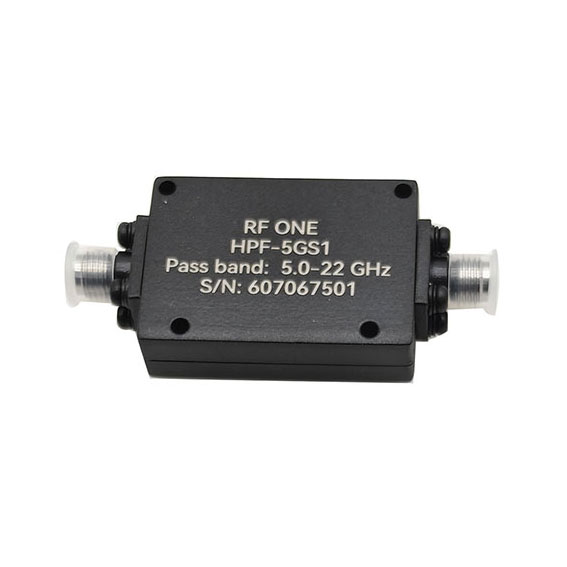

5-22 GHz SMA Female High Pass Filter
5-22 GHz SMA Female High Pass Filter 5-22 GHz SMA Female High Pass Filter 5-22 GHz SMA Female High Pass Filter
  • 5-22 GHz SMA Female High Pass Filter
Generic photo used for illustration purposes only.

5-22 GHz SMA Female High Pass Filter

P/N:HPF-5GS1
  • Passband Frequency:5.0-22 GHz
  • Insertion Loss Max:1.0 dB
  • VSWR Max:1.5
  • Reject Frequency:DC-4.48 GHz
  • Rejection Min:60 dB
  • Power Input Max:15 W
  • Connector:SMA

    • Datasheet

    Add to RFQ
