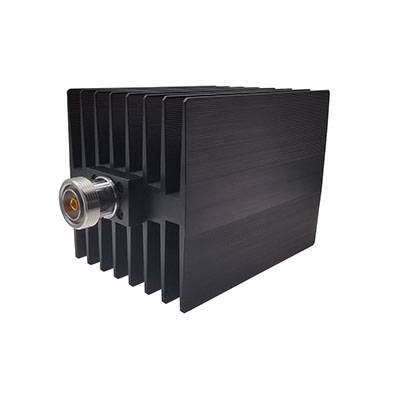

Generic photo used for illustration purposes only.

7/16 DIN Attenuator 6 GHz 100 Watts Unidirectional

P/N:RFH06XXDD100-D
  • Average Power:100 W
  • Frequency Max:6 GHz
  • Connector:7/16 DIN
  • VSWR Max:1.25
  • Attenuations:6-30 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):101*110*120
  • Description
    RFH06XXDD100-D from RF ONE is 7/16 DIN coaxial fixed attenuator operating DC to 6 GHz and rated for 100 Watts, unidirectional. Available from 6 to 30 dB. RoHS Compliant.

    For model RFH06XXDD100-D, replace the XX with the desired attenuation value. Example: RFH0630DD100-D for 30 dB.
