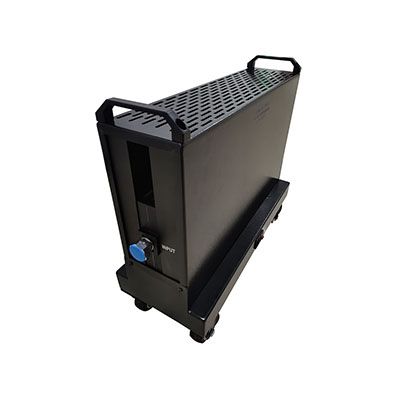

Generic photo used for illustration purposes only.

7/16 DIN Attenuator 6 GHz 1000 Watts Unidirectional

P/N:RFH06XXDD1000
  • Average Power:1000 W
  • Frequency Max:6 GHz
  • Connector:7/16 DIN
  • VSWR Max:1.4
  • Attenuations:30-60 dB
  • Shape:Rectangular
  • Direction:Unidirectional
  • Dimensions (mm):486*220*508
  • Description
    RFH06XXDD1000 from RF ONE is 7/16 DIN coaxial fixed attenuator operating DC to 6 GHz and rated for 1000 Watts, unidirectional. Available from 30 to 60 dB. RoHS Compliant.

    For model RFH06XXDD1000, replace the XX with the desired attenuation value. Example: RFH0640DD1000 for 40 dB.
