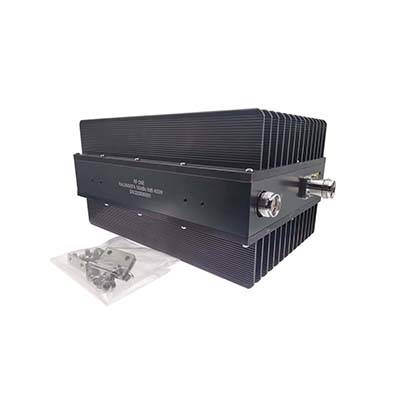

Generic photo used for illustration purposes only.
RALXX400DA is 7/16 DIN low PIM attenuator with industry leading -160 dBc (min) & -165 dBc (typical) passive intermodulation and covers wide bandwidth from 555-6000 MHz. Power rated 400 watts, Unidirectional. They feature stable attenuation accuracy over high power input and temperature changes, well-suited for applications in wireless base station, in-building passive and active DAS systems etc. Available dB values from 6 dB to 40 dB.
For model RALXX400DA, replace the XX with the desired attenuation value. EXAMPLE: RAL30400DA for 30 dB.
