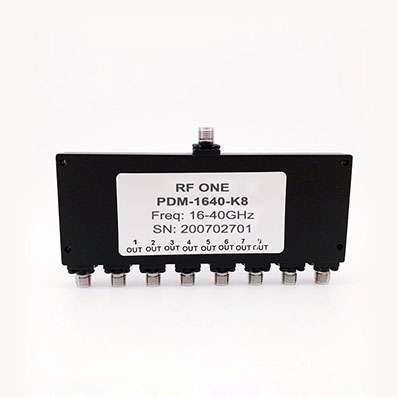

Generic photo used for illustration purposes only.

8 Way 2.92mm Power Divider 16-40 GHz

P/N:PDM-1640-K8
  • Frequency Min:16 GHz
  • Frequency Max:40 GHz
  • Insertion Loss Max:3.2 dB
  • Input VSWR Max:1.8
  • Output VSWR Max:1.6
  • Isolation Min:15 dB
  • Amplitude Balance Max:±0.6 dB
  • Phase Balance Max:±8°
  • Input Power Max:20 W
  • Connector:2.92mm
  • Description
    PDM-1640-K8 is a 8 way power divider/combiner that covers the frequency range of 16-40 GHz. This RF coaxial 2.92mm power divider/splitter has a 50 Ohm nominal impedance and a maximum input power of 20 watts as a divider. It uses the Wilkinson splitter design with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance.
